Description
DS-2CD1023G2-LIDUF/4G/SL

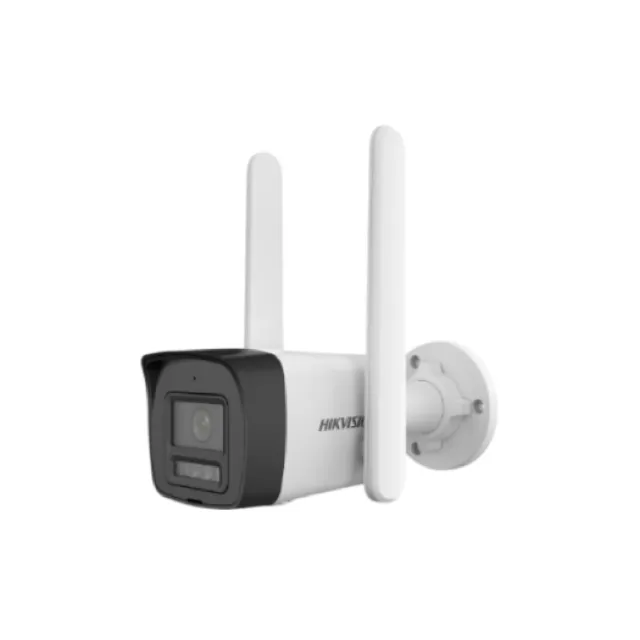

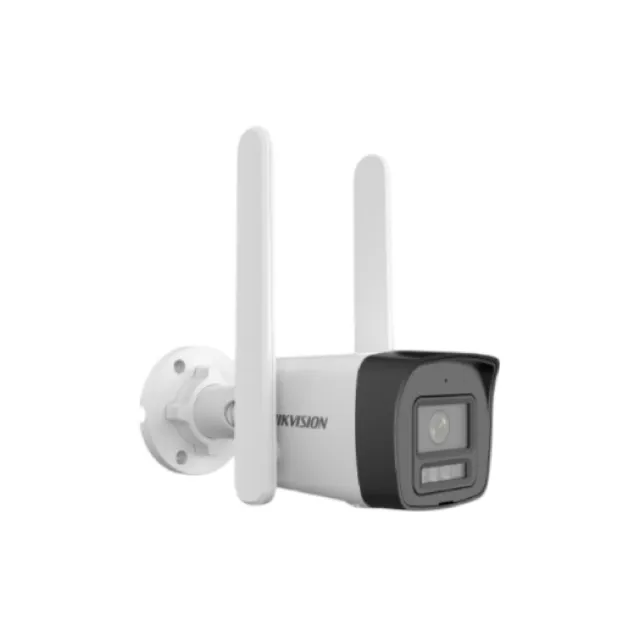

2 MP Smart Hybrid Light 4G Fixed Bullet Network Camera
- Water and dust resistant (IP67)
- Support 4G LTE data transmission
- Support Human and Vehicle Detection
- Efficient H.265+ compression technology
- High quality imaging with 2 MP resolution
- Provide real-time security via built-in two-way audio
- Support on-board storage up to 512 GB (SD card slot)
- Smart Hybrid Light: advanced technology up to 30 meters
Specification
| Camera | Image Sensor | 1/2.9″ Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 | |
| Day & Night | IR cut filter | |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° | |
| Lens | Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 104°, vertical FOV 57°, diagonal FOV 121° 4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100° |
|
| Illuminator | Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 30 m | |
| Video | Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (768 x 432) 60 Hz: 30 fps (768 x 432) |
|
| Video Compression | Main stream: H.265/H.264, Sub-stream: H.265/H.264/MJPEG |
|
| Audio | Audio Type | Mono sound |
| Audio Sampling Rate | 8 kHz/16 kHz | |
| Image | Wide Dynamic Range (WDR) | Digital WDR |
| SNR | ≥ 52 dB | |
| Privacy Mask | 4 programmable polygon privacy masks | |
| Day/Night Switch | Day, Night, Auto, Schedule | |
| Interface | Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB | |
| Built-in Microphone | Yes, 1 built-in microphone | |
| Built-in Speaker | Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB. | |
| Reset Key | Yes | |
| Event | Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| General | Power | 12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug, reverse polarity protection |
| Package Dimension | 530 mm × 524 mm × 325 mm (8.5″ × 4.8″ × 4.6″) | |
| With Package Weight | Approx. 722 g (1.59 lb.) | |
| General Function | Heartbeat, anti-banding, mirror, password protection, password reset via email |
