Description

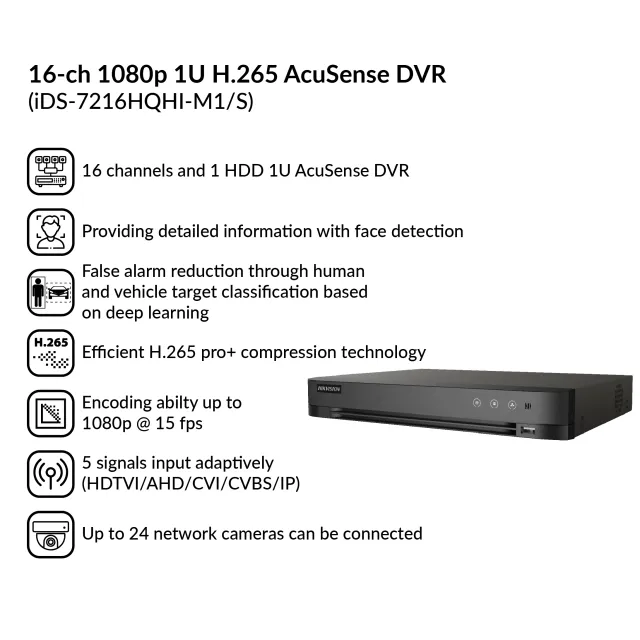

16 CHANNEL 1U AcuSense DVR iDS-7216HQHI-M1/S
Hikvision iDS-7208HQHI-M1/S has deep learning-based motion detection 2.0 for all analog channels.
– Deep learning-based perimeter protection
– H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
– HDTVI/AHD/CVI/CVBS/IP video inputs
– Audio via coaxial cable
– Up to 6/12/24-ch IP camera inputs (up to 6 MP)
– Up to 10 TB capacity per HDD
Product Specifications
Human/Vehicle Analysis |
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; |
Human/Vehicle Analysis |
Up to 4-ch |
Video compression |
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
Video bitrate |
32 Kbps to 6 Mbps |
IP video input2 |
2-ch (up to 18-ch) |
Up to 6 MP resolution |
|
Support H.265+/H.265/H.264+/H.264 IP cameras |
|
Analog video input |
16-ch |
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
|
Synchronous playback |
16-ch |
Remote connection |
128-ch |
Network protocol |
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
Network interface |
1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface |
SATA |
1 SATA interface, up to 10 TB capacity for each disk |
Serial interface |
RS-485 (half-duplex) |
Power supply |
12 VDC, 2 A |
Consumption (without HDD) |
≤ 24 W |
Dimension (W × D × H) |
315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) |
Weight (without HDD) |
≤ 2.2 kg (4.4 lb) |
