Description
DS-2DE2A204IW-DE3(C0)(S6)(C)

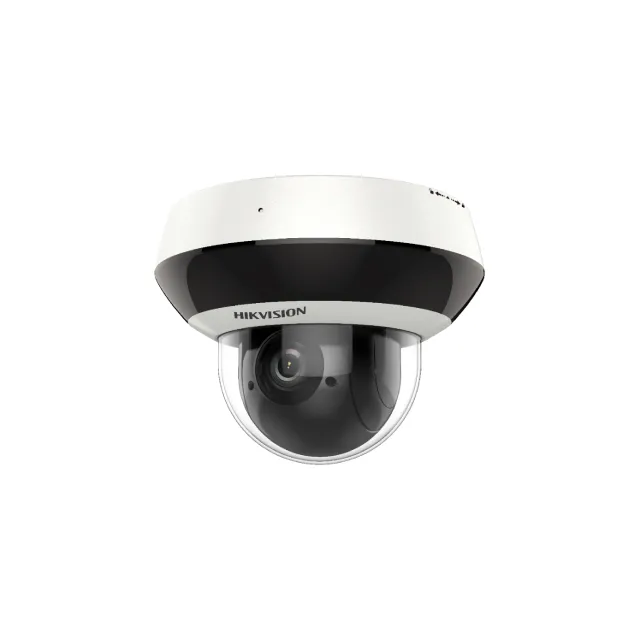

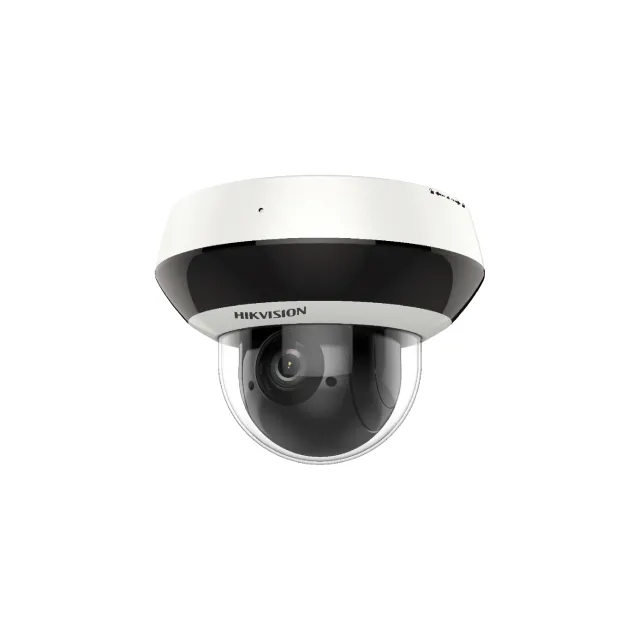

2-inch 2 MP 4x Zoom IR Mini PT Dome Network Camera
Hikvision DS-2DE2A204IW-DE3(S6) 2 MP 4× IR PTZ Network Camera can be widely used in indoor scenes, such as corridor, office, factory, convenience store, and restaurant.
Product Specifications
Image Sensor |
1/2.8″ Progressive Scan CMOS |
Max. Resolution |
1920 × 1080 |
Min. Illumination |
Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR |
Zoom |
4x optical, 16x digital |
Focal Length |
2.8 to 12 mm |
FOV |
Horizontal FOV 100.5° to 32.6°, vertical FOV 52.8° to 18.3°, diagonal FOV 120.2° to 37.5° |
Zoom Speed |
Approx. 2 s |
Supplement Light Range |
IR Distance: up to 20 m |
Movement Range (Pan) |
0° to 355° |
Movement Range (Tilt) |
0° to 90° |
Main Stream |
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720);
|
Wide Dynamic Range (WDR) |
120 dB |
On-board Storage |
Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB |
Built-in Microphone |
1 built-in microphone, picking up sounds in the radius up to 5 meters |

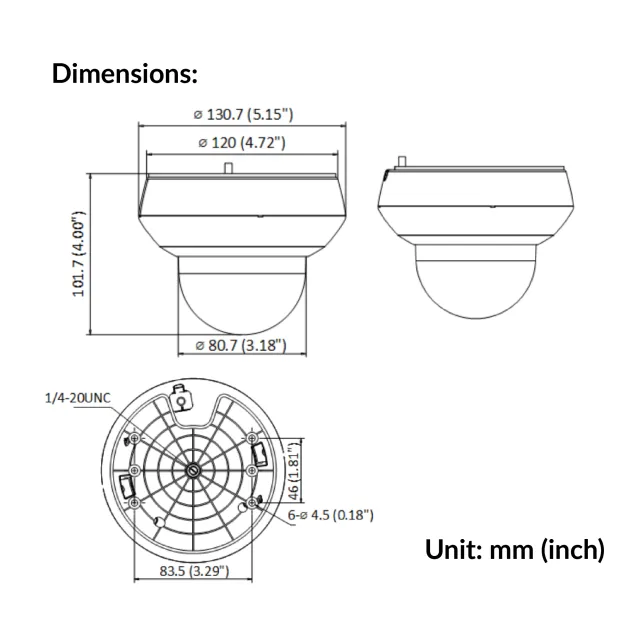

Dimension |
Ø 130.7 mm ×101.7 mm (Ø 5.15″ × 4.00″) |
Weight |
Approx. 530 g (1.17 lb.) |
Protection |
IP66 (IEC 60529-2013), IK10, TVS 4000V lightning protection, surge protection and voltage transient protection |
