Description

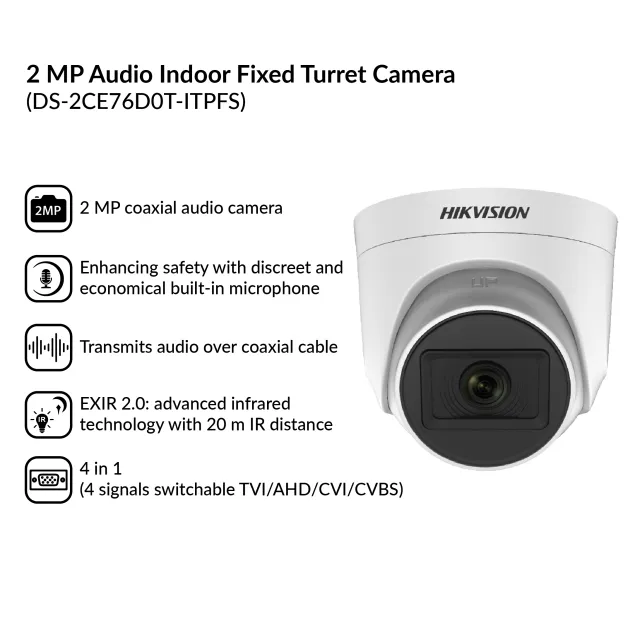

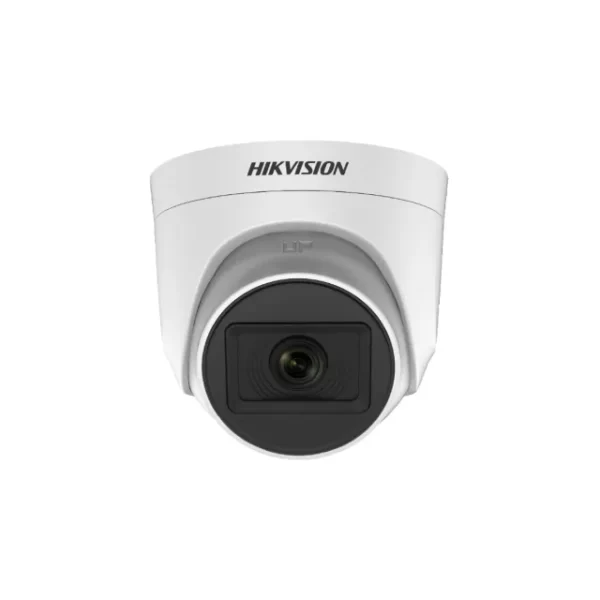

DS-2CE76D0T-ITPFS – 2 MP Audio Camera
- 2 MP, 1920 × 1080 resolution
- 2.8 mm fixed focal lens
- Smart IR, up to 20 m IR distance
- Audio over coaxial cable, built-in mic
- 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
Product Specifications
Image Sensor |
2 MP CMOS |
Signal System |
PAL/NTSC |
Min. Illumination |
0.01 Lux@(F1.2, AGC ON), 0 Lux with IR |
Angle Adjustment |
Pan: 0 to 360°, Tilt: 0 to 75°, Rotation 0 to 360° |
Wide Dynamic Range |
Digital WDR |
Audio |
Built-in mic |
Field of Vision |
2.8 mm: 106.4° (H), 57.9° (V), 124.6° (D)
|
IR Range |
Up to 20 m |
Max. Resolution |
1920 (H) × 1080 (V) |
Max. Frame |
TVI: 1080P@30fps, 1080P@25fps
|
Power |
12 VDC ± 25% |
Working Temperature |
-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing) |
Material |
Plastic |

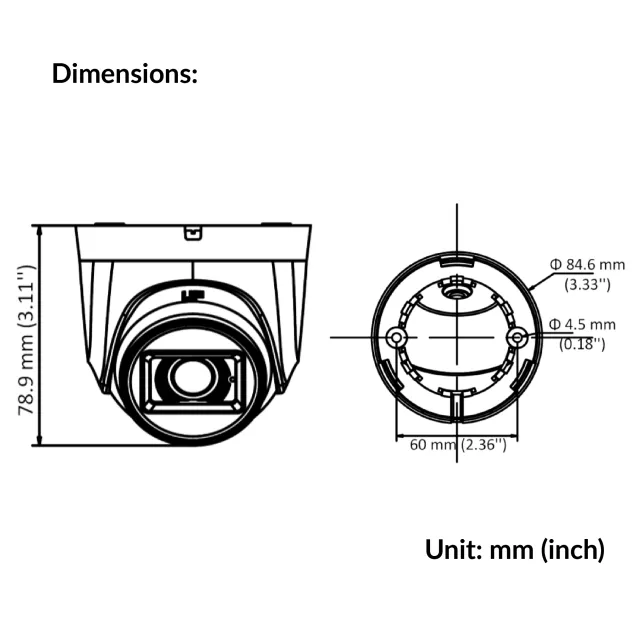

Dimensions |
Φ 84.6 mm × 78.9 mm (Φ 3.33″ × 3.11″) |
Weight |
Approx. 140.5 g (0.31 lb.) |
Datasheet
