Description

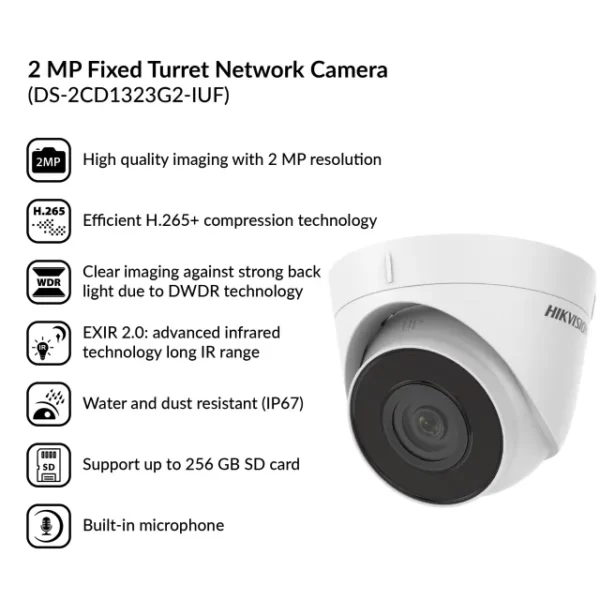

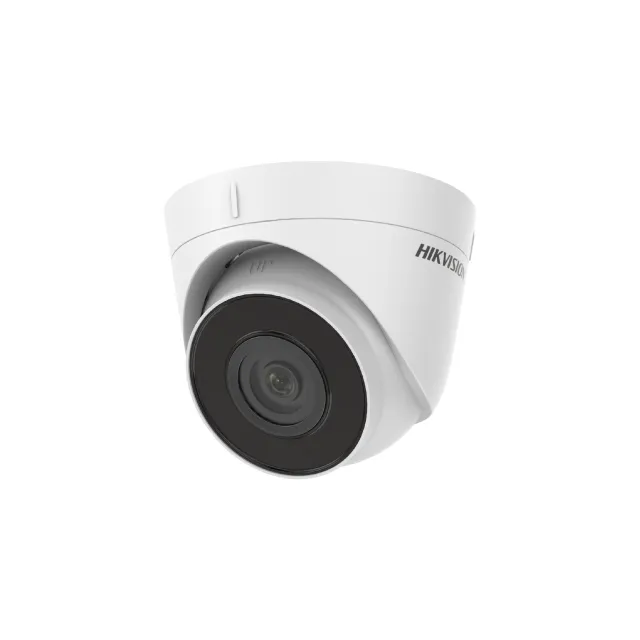

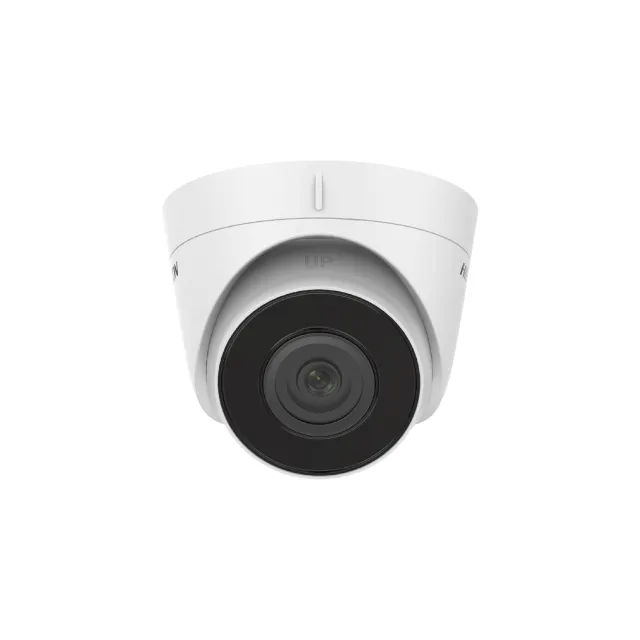

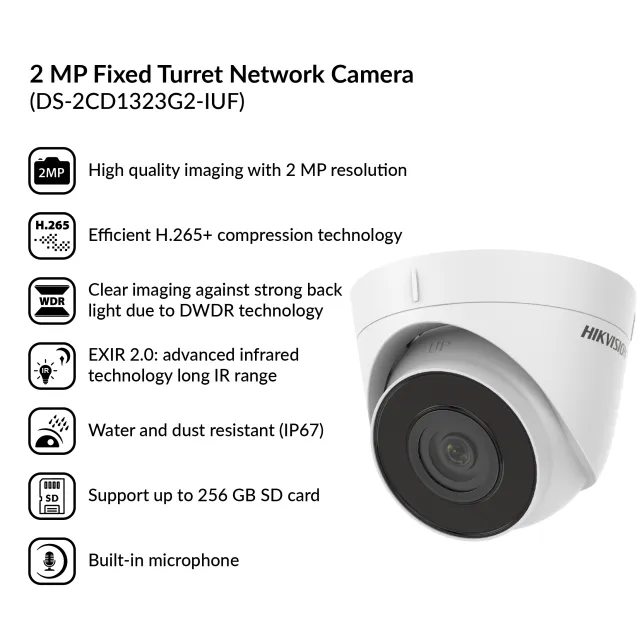

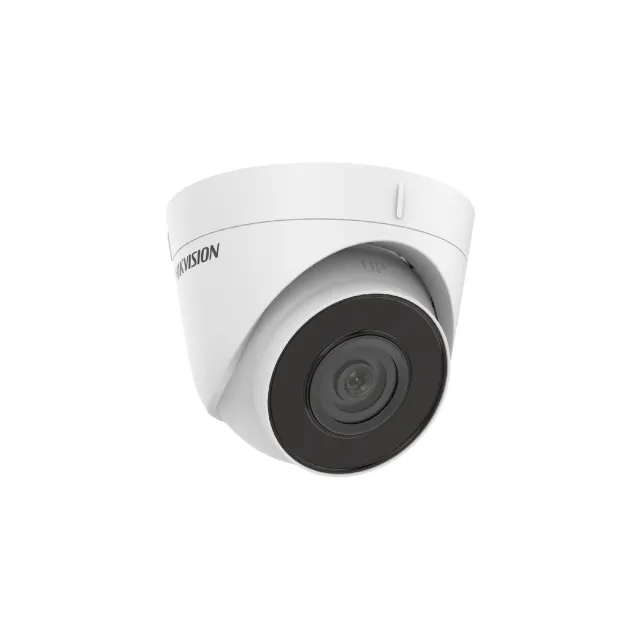

DS-2CD1323G2-IUF
2 MP Fixed Turret Network Camera
Product Specifications
Image Sensor |
1/2.7″ Progressive Scan CMOS |
Min. Illumination |
Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR |
Wide Dynamic Range |
Digital WDR |
Day & Night |
IR cut filter |
Angle Adjustment |
Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
Focal Length & FOV |
2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2°
|
IR Range |
Up to 30 m |
Max. Resolution |
1920 × 1080 |
Main Stream |
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
|
On-Board Storage |
Built-in memory card slot, support microSD card, up to 256 GB |
Built-in Microphone |
Yes |
Camera Material |
Metal & Plastic |

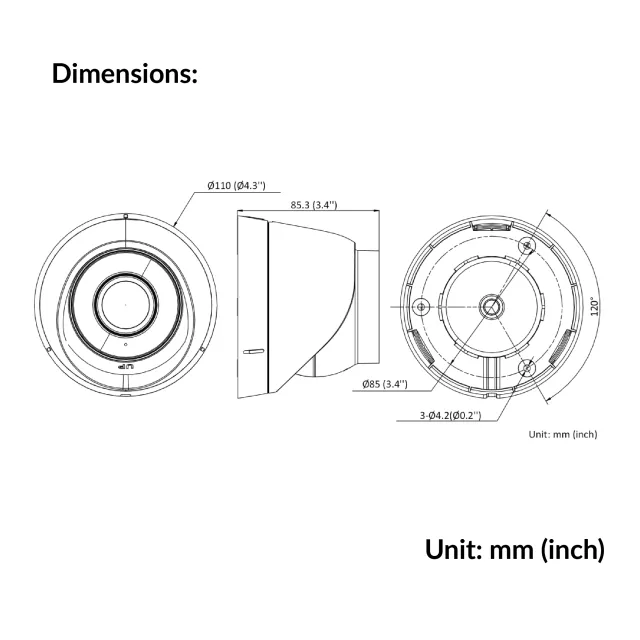

Camera Dimension |
Ø110 mm × 85.3 mm (Ø4.3″ × 3.4″) |
Camera Weight |
Approx. 320 g (0.7 lb.) |
Protection |
IP67 (IEC 60529-2013) |
Datasheet
