Description

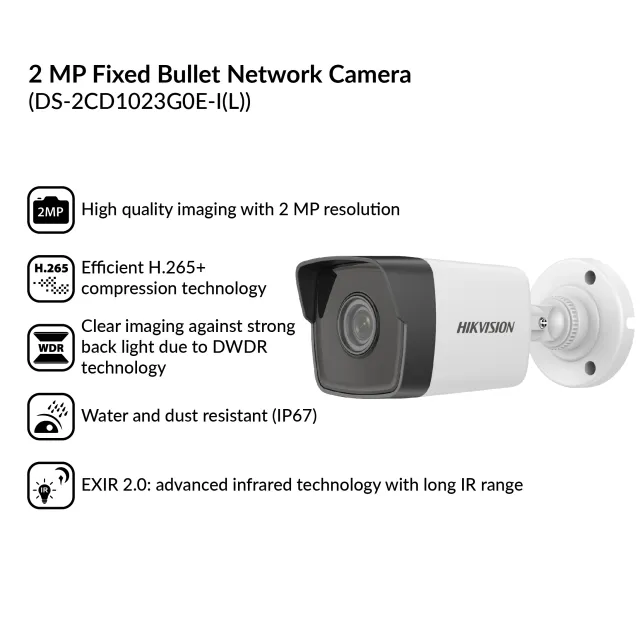

DS-2CD1023G0E-I(L) – 2 MP Fixed Bullet Network Camera
- High quality imaging with 2 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to DWDR technology
- Water and dust resistant (IP67)
- EXIR 2.0: advanced infrared technology with long IR range
Product Specifications
Image Sensor |
1/2.7″ Progressive Scan CMOS |
Min. Illumination |
Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR |
Angle Adjustment |
Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360° |
Wide Dynamic Range |
Digital WDR |
Day & Night |
IR cut filter |
Field of Vision |
2.8 mm: 112.1° (H), 60.0° (V), 132.2° (D)
|
IR Distance |
Up to 30 m |
Video Compression |
H.265/H.264 |
Max. Resolution |
1920 × 1080 |
Max. Frame |
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
|
Power |
12 VDC ± 25% PoE: 802.3af, Class 3 |
Working Temperature |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) |
Material |
Metal & Plastic |
Protection |
IP67 (IEC 60529-2013) |

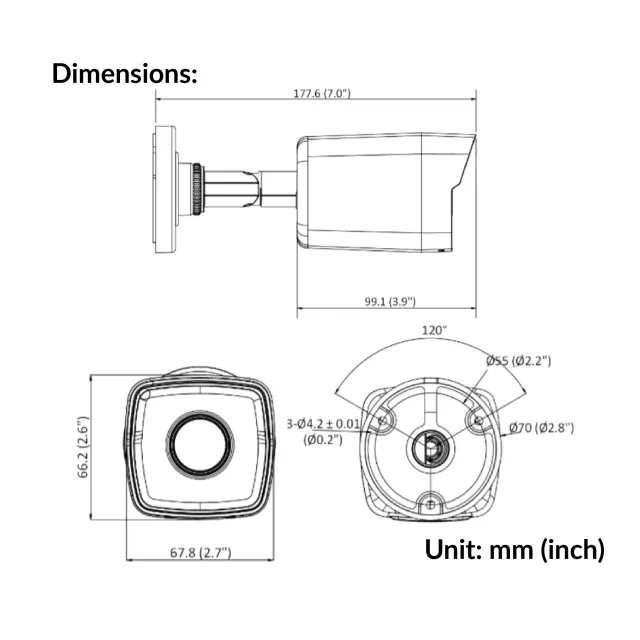

Dimensions |
177.6 mm × 66.2 mm × 67.8 mm (7.0″ × 2.6″ × 2.7″) |
Weight |
Approx. 270 g (0.6 lb.) |
Datasheet
