Description

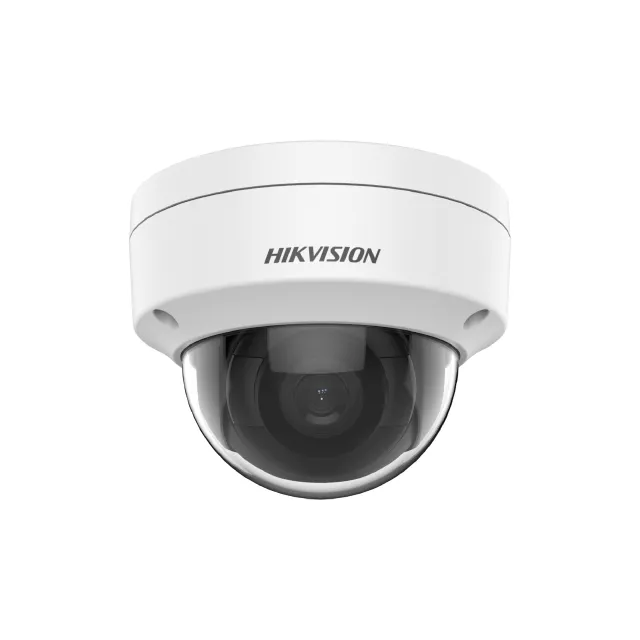

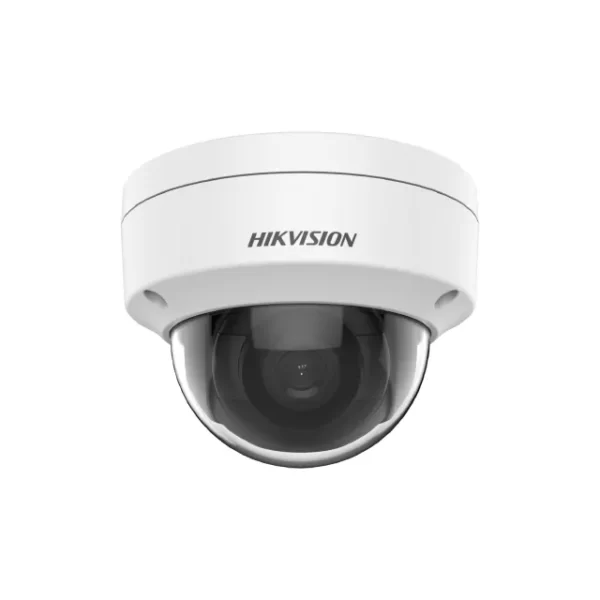

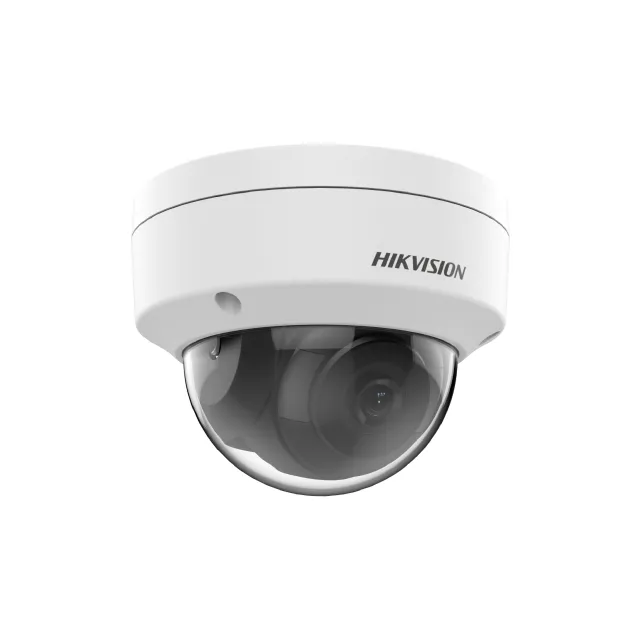

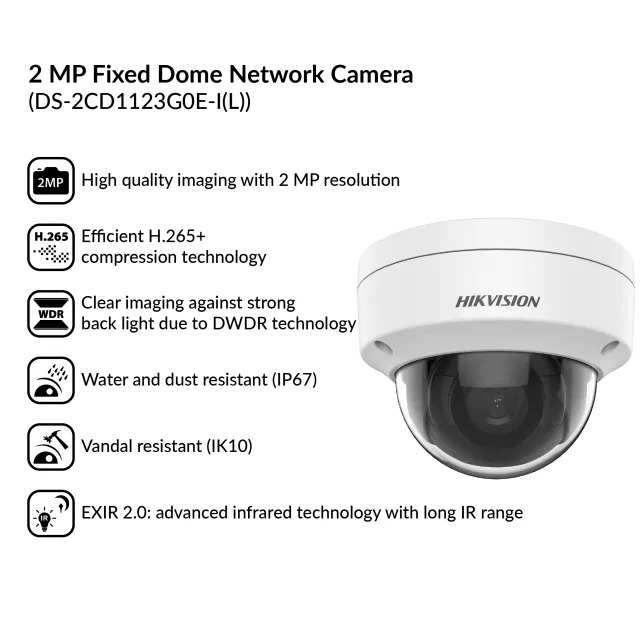

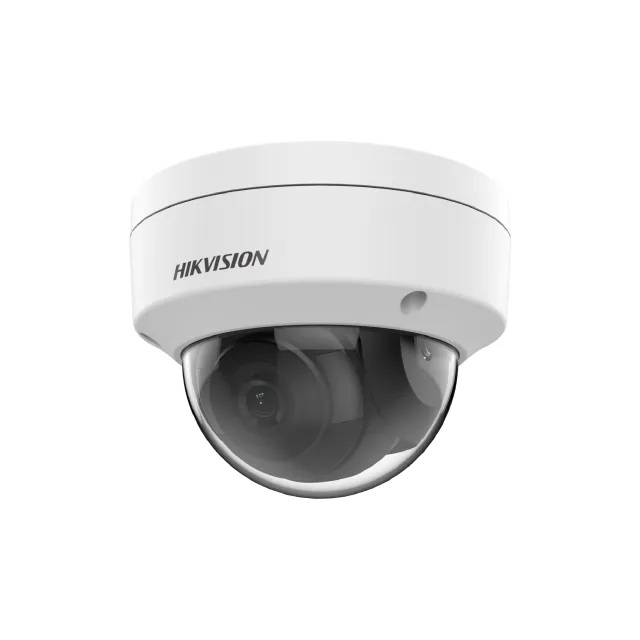

DS-2CD1123G0E-I(L) – 2 MP IR Fixed Network Dome Camera
- 1/2.8″ progressive scan CMOS
- 1920 × 1080@30fps
- 2.8 mm/4 mm fixed lens
- H.265+/H.265/H.264+/H.264
- 3D DNR
- Up to 30 m IR range
- IP67, IK10
Product Specifications
Image Sensor |
1/2.8″ progressive scan CMOS |
Min. Illumination |
Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON) |
Angle Adjustment |
Pan: 0° to 355°, tilt: 0° to 75° |
Wide Dynamic Range |
WDR DWDR |
Day & Night |
IR cut filter |
Field of Vision |
2.8 mm: 114.8° (H), 62° (V), 135.5° (D)
|
IR Distance |
Up to 30 m |
Video Compression |
H.265+/H.265/H.264+/H.264 |
Max. Resolution |
1920 × 1080 |
Max. Frame |
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
|
Power |
12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3) |
Working Temperature |
-30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing) |
Material |
Front cover: plastic, back cover & bracket: metal |
Protection |
IP67, IK10 |

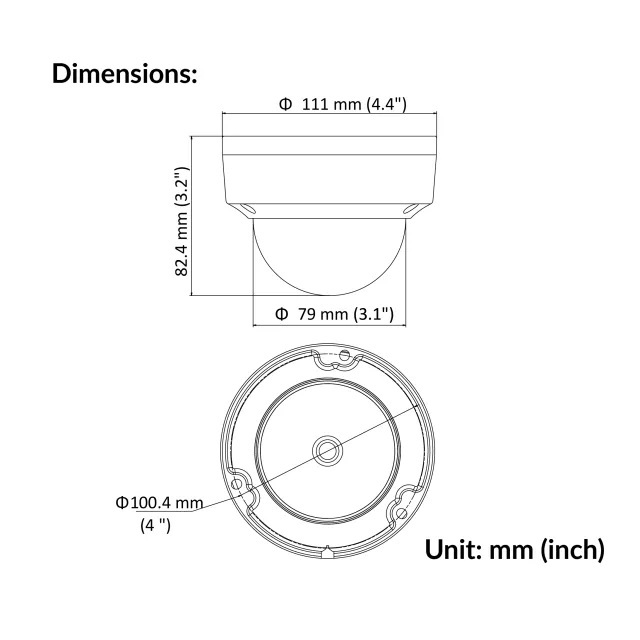

Dimensions |
Ø 111 mm × 82.4 mm (4.4″ × 3.2″) |
Weight |
Approx. 400 g (0.9 lb.) |
Datasheet
