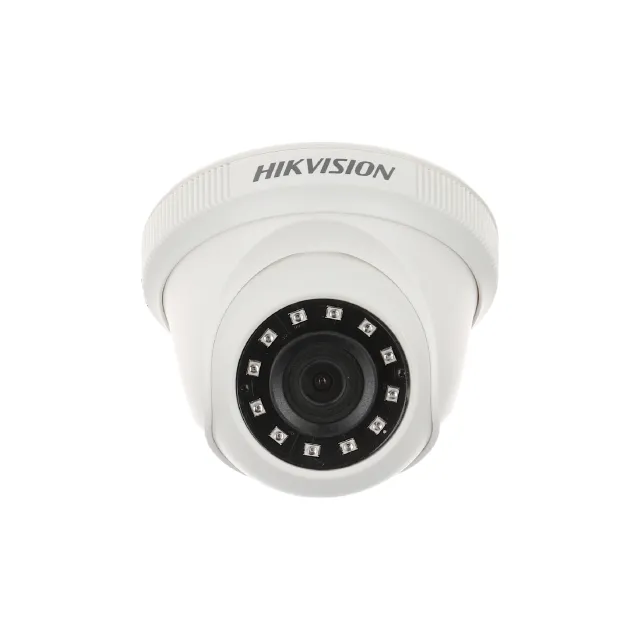

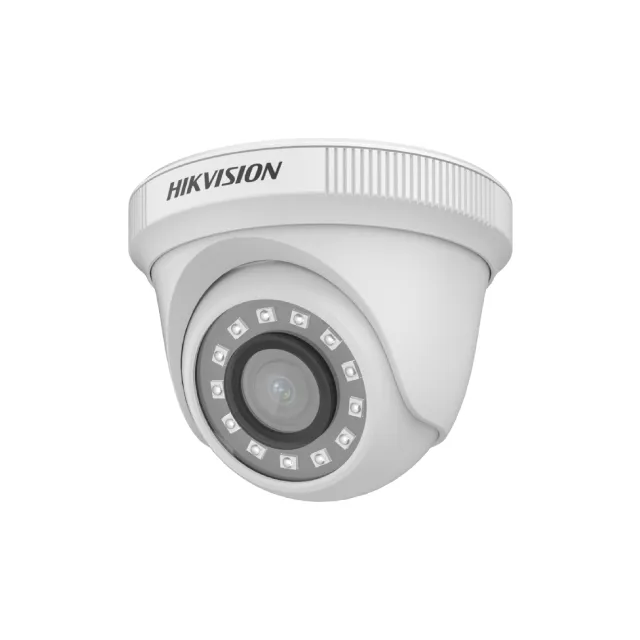

2MP Fixed Turret Camera | DS-2CE56D0T-IRF(C)
2MP Fixed Turret Camera | DS-2CE56D0T-IRF(C) - Image 2
2MP Fixed Turret Camera | DS-2CE56D0T-IRF(C) - Image 3
2MP Fixed Turret Camera | DS-2CE56D0T-IRF(C) - Image 4

2MP Fixed Turret Camera | DS-2CE56D0T-IRF(C)

Original price was: $84.00.Current price is: $46.00.

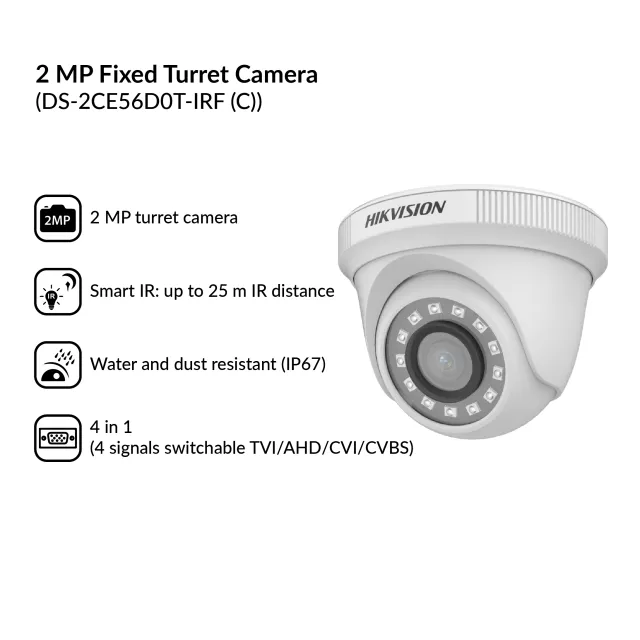

DS-2CE56D0T-IRF(C)

– 2 MP bullet camera
– Smart IR: up to 25 m IR distance
– Water and dust resistant (IP67)
– 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Categories: , ,

Description

DS-2CE16D0T-IRF – 2 MP Camera

  • 2 MP, 1920 × 1080 resolution
  • 2.8 mm, 3.6 mm, 6 mm fixed focal lens
  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
  • Smart IR, up to 25 m IR distance
  • IP67

Product Specifications

Image Sensor
2 MP CMOS
Signal System
PAL/NTSC
Min. Illumination
0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Angle Adjustment
Pan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360°
Wide Dynamic Range
Digital WDR
Day & Night
ICR
Field of Vision
2.8 mm: 101° (H), 60° (V), 122° (D)
3.6 mm: 79.6° (H), 43.5° (V), 93.7° (D)
6 mm: 51.9° (H), 30° (V), 58.8° (D)
IR Distance
Up to 25 m
Max. Resolution
1920 (H) × 1080 (V)
Max. Frame
TVI: 1080P@30fps, 1080P@25fps
CVI: 1080P@30fps, 1080P@25fps
AHD: 1080P@30fps, 1080P@25fps
CVBS: PAL/NTSC
Power
12 VDC ± 25%
Working Temperature
-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
Material
Metal

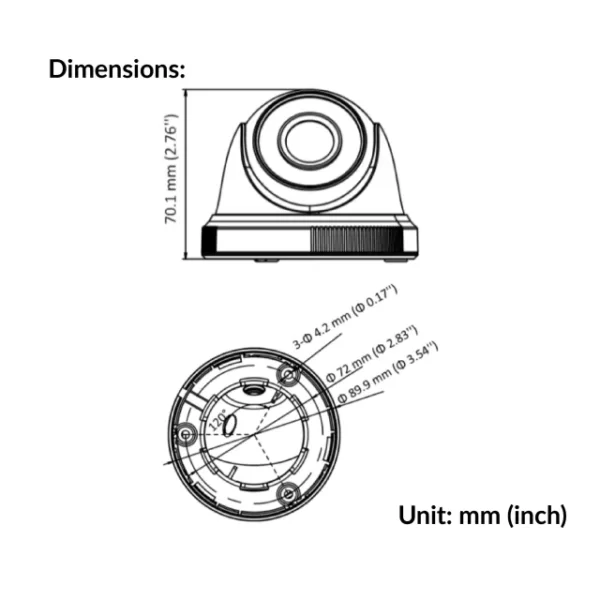

Dimensions
Φ 89.9 mm × 70.1 mm (Φ 3.54″ × 2.76″)
Weight
Approx. 173 g (0.38 lb.)

Datasheet

Download Datasheet
