Description

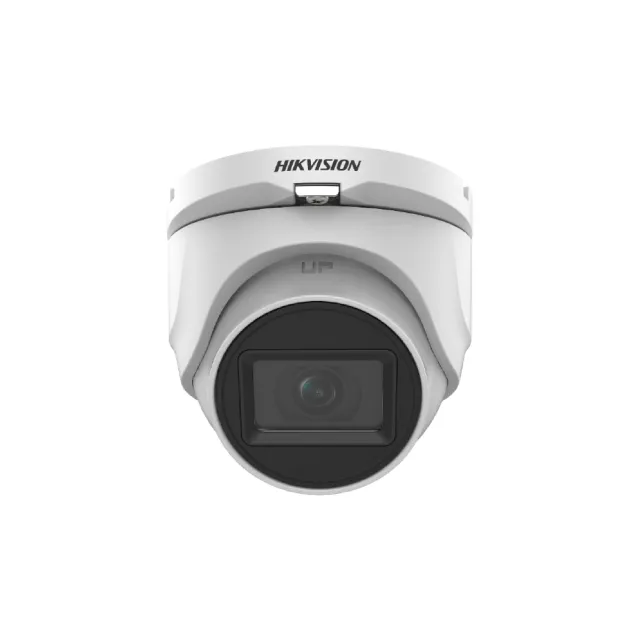

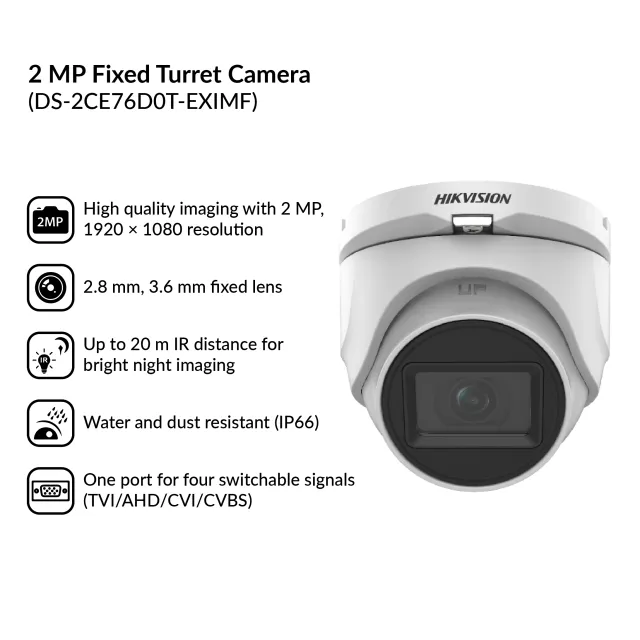

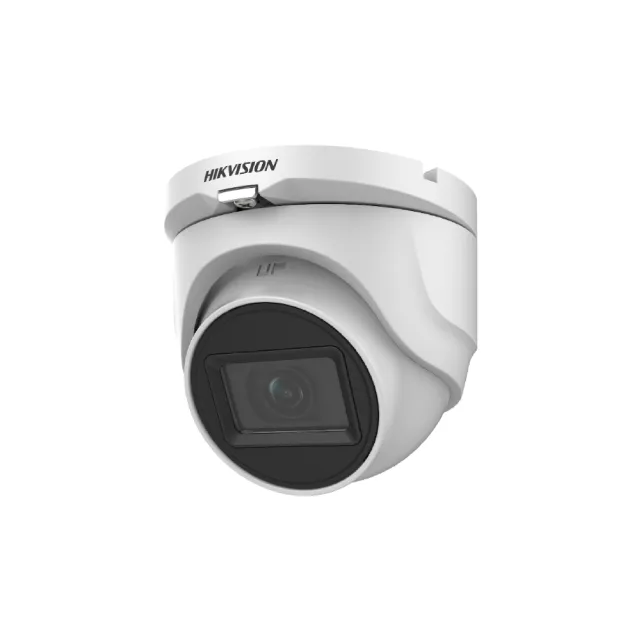

DS-2CE76D0T-EXIMF – 2MP Outdoor EXIR Fixed Turret Camera
- High quality imaging with 2 MP, 1920 × 1080 resolution
- 2.8 mm, 3.6 mm fixed lens
- Up to 20 m IR distance for bright night imaging
- One port for four switchable signals (TVI/AHD/CVI/CVBS)
- Water and dust resistant (IP66)
Product Specifications
Image Sensor |
2 MP CMOS |
Signal System |
PAL/NTSC |
Min. Illumination |
0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR |
Angle Adjustment |
Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
Wide Dynamic Range |
Digital WDR |
Field of Vision |
2.8 mm: 102° (H), 55° (V), 123° (D)
|
IR Range |
Up to 20 m |
Max. Resolution |
1920 (H) × 1080 (V) |
Max. Frame |
TVI: 1080p@25fps/30fps
|
Power |
12 VDC ± 25% |
Working Temperature |
-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing) |
Material |
Metal |
Protection Level |
IP66 |

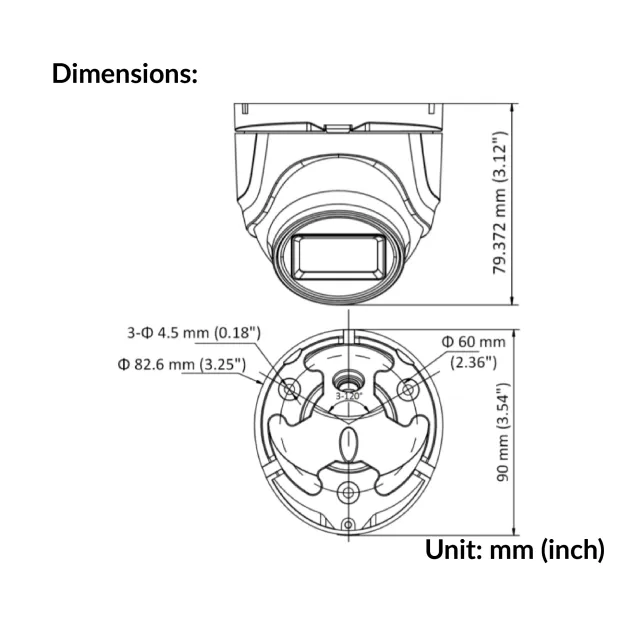

Dimensions |
90 mm × 82.6 mm × 79.372 mm (3.54″ × 3.25″ × 3.12″) |
Weight |
Approx. 360g (0.79 lb.) |
Datasheet
