Description

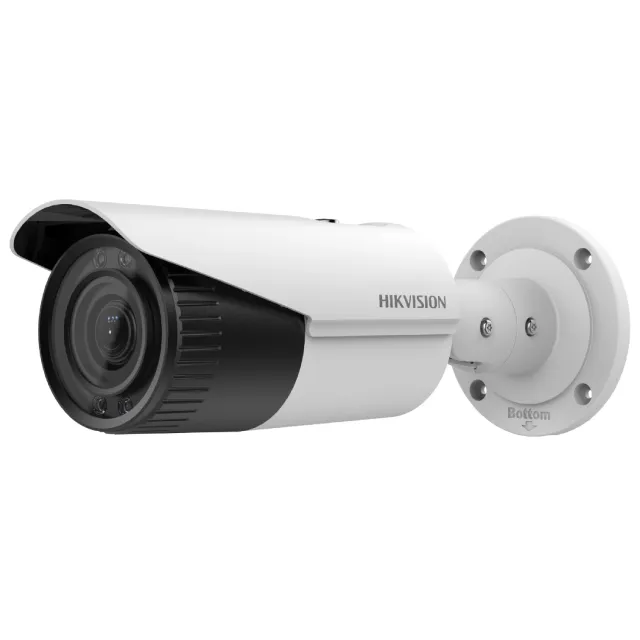

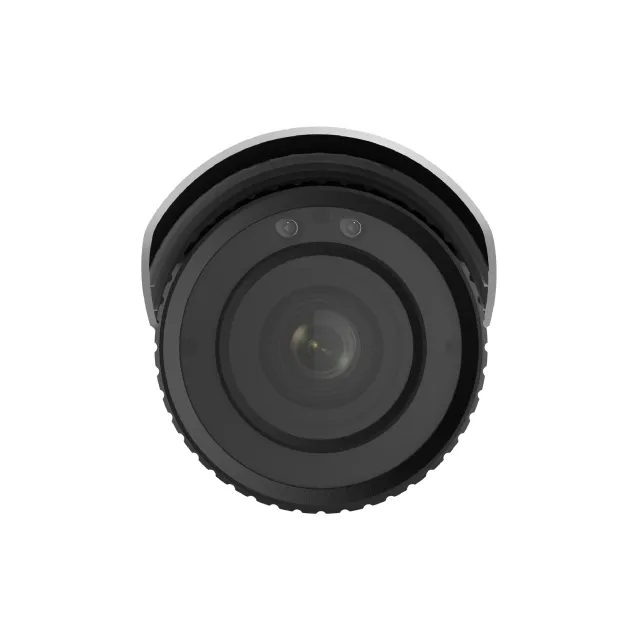

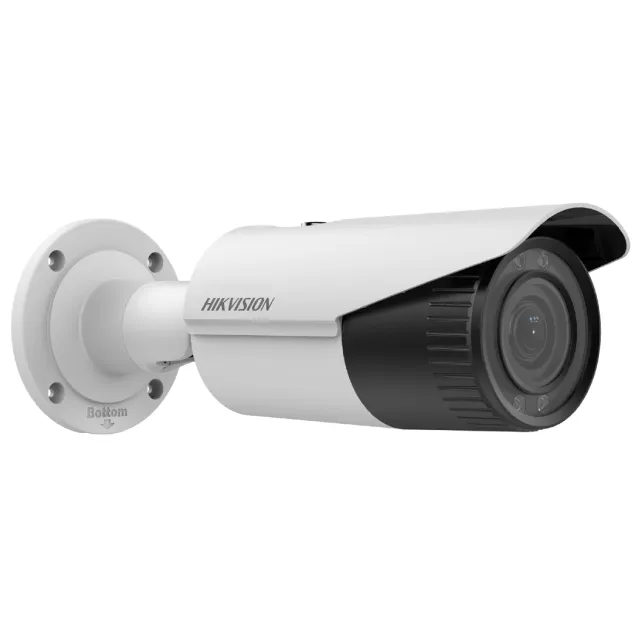

DS-2CD2621G0-IZS – 2 MP WDR Varifocal Bullet Network Camera
- High quality imaging with 2 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- -Z: motorized varifocal lens for easy installation and monitoring
- -S: audio and alarm interface available
- Water and dust resistant (IP67)
- Robust structure design with full metal materials
Product Specifications
Image Sensor |
1/2.7″ Progressive Scan CMOS |
Min. Illumination |
1/2.7″ Progressive Scan CMOS |
Day & Night |
IR Cut Filter |
WDR |
120dB |
Angle Adjustment |
Pan: 0° to 360°, tilt: 0° to 100°, rotation: 0° to 360° |
Field of Vision |
2.8 to 12 mm: 94° to 36° (H), 50° to 20° (V), 109° to 42° (D) |
IR Distance |
Up to 30 m |
Video Compression |
H.265+/H.265/H.264+/H.264 |
Max. Resolution |
1920 × 1080 |
Max. Frame |
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
|
Power |
12 VDC ± 25%, 0.9 A, max. 11 W, Ø 5.5 mm coaxial power plug PoE: (802.3af, Class 3, 36 V to 57 V), 0.23 A to 0.36 A, max. 12.9 W |
Working Temperature |
-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing) |
Protection |
IP67: IEC 60529-2013 |

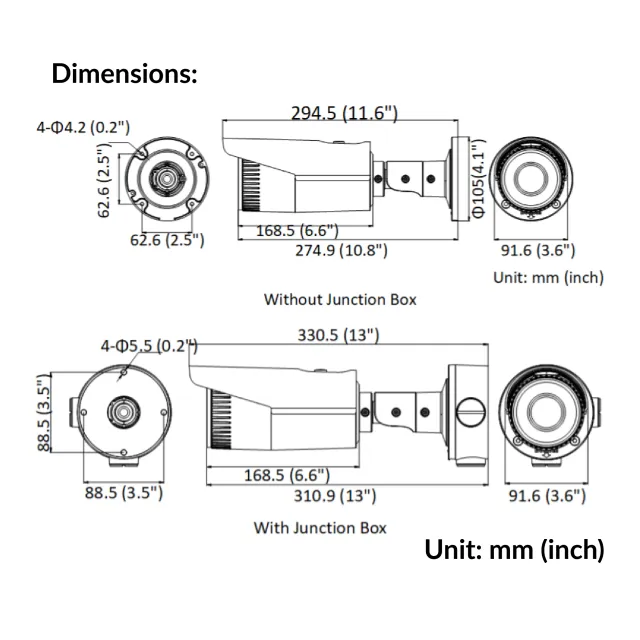

Dimensions |
Ø 105 mm × 294.5 mm (4.1″ × 11.6″) |
Weight |
Approx. 1050 g (2.3 lb.) |
Datasheet
