Description

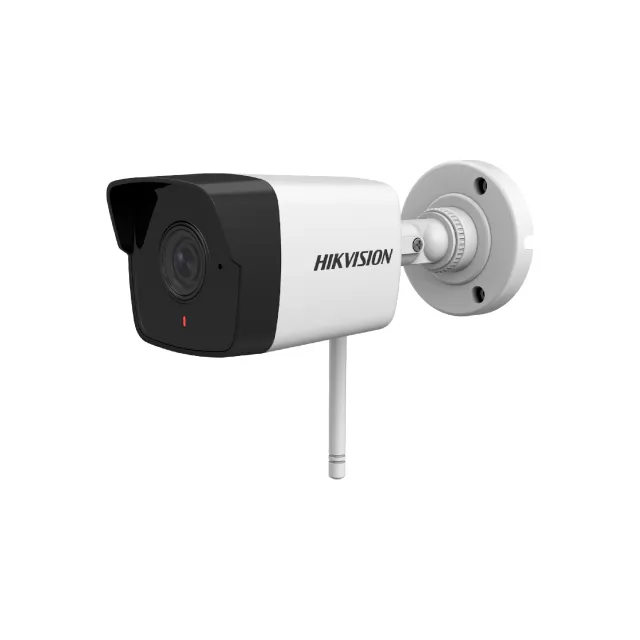

DS-2CV1021G0-IDW
2 MP IR Fixed Bullet Wi-Fi Network Camera
Product Specifications
Image Sensor |
1/2.7″ Progressive Scan CMOS |
Min. Illumination |
Color: 0.028 Lux @ (F2.0, AGC ON) |
Angle Adjustment |
Pan: 0° to 360°, tilt: -90° to 90°, rotate: 0° to 90° |
WDR |
DWDR |
Day & Night |
IR Cut Filter |
Network Storage |
Support micro SD/SDHC/SDXC card (max. 256 GB), local storage and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
Aperture |
F2.0 |
Focus |
Fixed |
FOV |
2.8 mm, horizontal FOV: 114.5°, vertical FOV: 62°, diagonal FOV: 135.5°
|
On-board storage |
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
Max. Resolution |
1920 × 1080 |
Main Stream |
50Hz: 25 fps (1920 × 1080, 1280 × 720)
|
Material |
Front cover: metal, back cover: plastic |

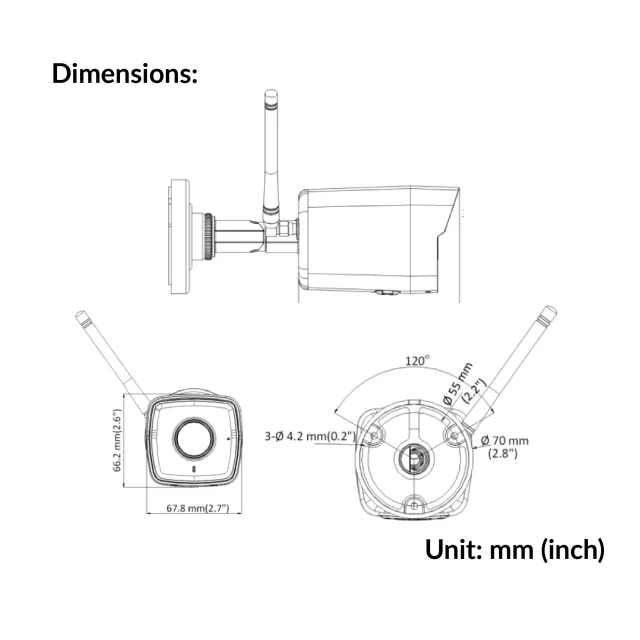

Dimensions |
177.6 mm × 68 mm × 66 mm (7″ × 2.7″ × 2.6″) |
Weight |
approx. 270 g (0.6 lb.) |
Protection |
Ingress protection: IP66 (IEC 60529-2013) |
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264
|
IR Range |
Up to 30 m |
Wavelength |
850 nm |
Wireless Range |
Up to 80 m (The performance varies based on actual environment.) |
Datasheet
