Description

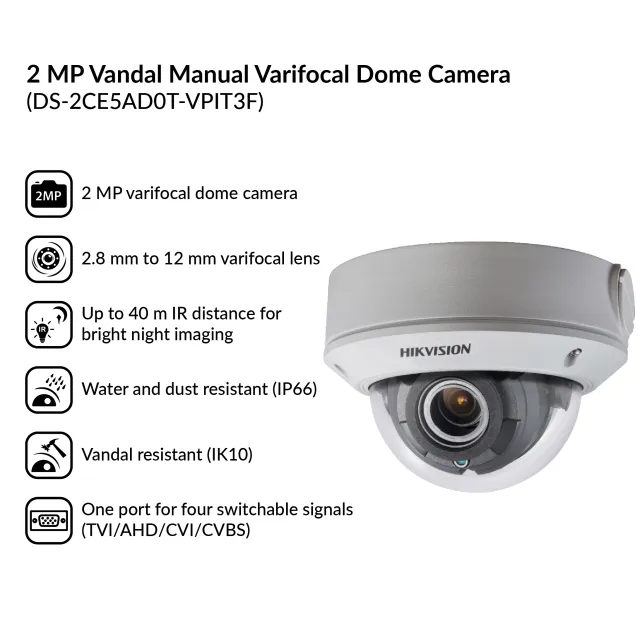

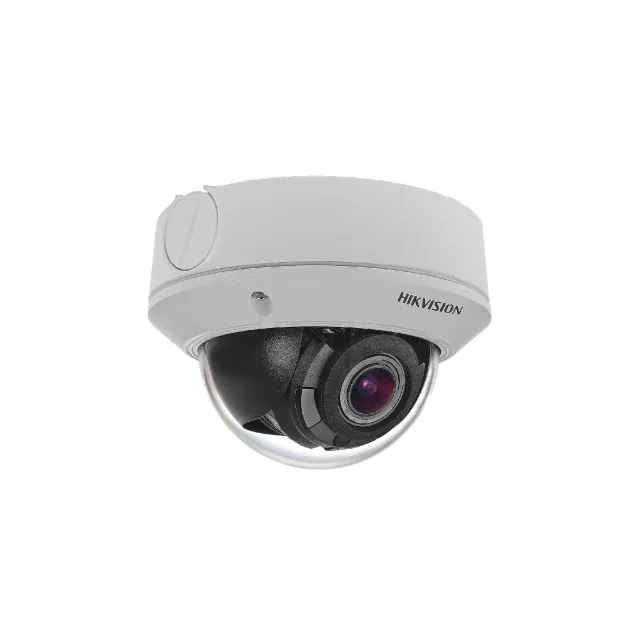

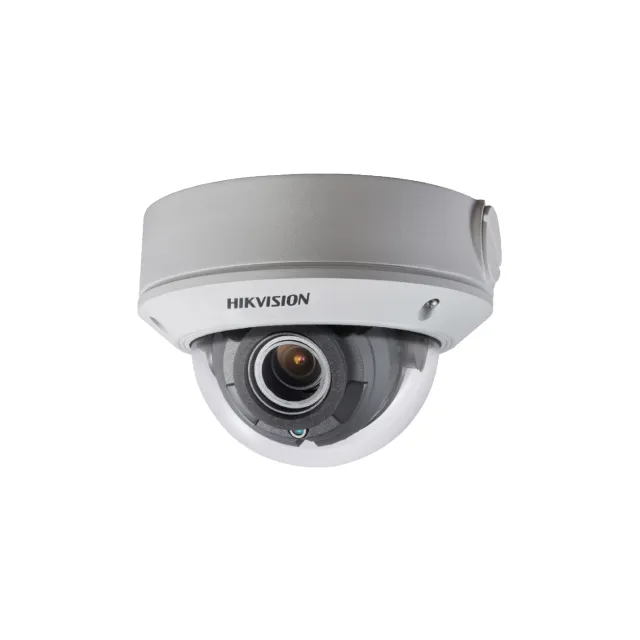

DS-2CE5AD0T-VPIT3F – 2 MP Vandal Proof VF Dome Camera
- 2 megapixel high performance COMS
- 1920 × 1080 resolution
- 2.8 mm to 12 mm vari-focal lens
- EXIR 2.0, smart IR, up to 40 m IR distance
- 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
- IP67, IK10
- Up the coax (HIKVISION-C)
Product Specifications
Image Sensor |
2.0 MP progressive scan CMOS |
Signal System |
PAL/NTSC |
Min. Illumination |
Color: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR |
Angle Adjustment |
Pan: 0° to 355°, Tilt: 0° to 70°, Rotation: 0° to 355° |
Horizontal Field of Vision |
102.25 °to 32 ° |
IR Range |
Up to 40 m |
Max. Resolution |
1920 (H) ×1080 (V) |
Max. Frame |
PAL: 1080p@25fps
|
Power |
12 VDC ±25% |
Working Temperature |
-40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensation) |
Material |
Metal |
Protection Level |
IP67, IK10 |

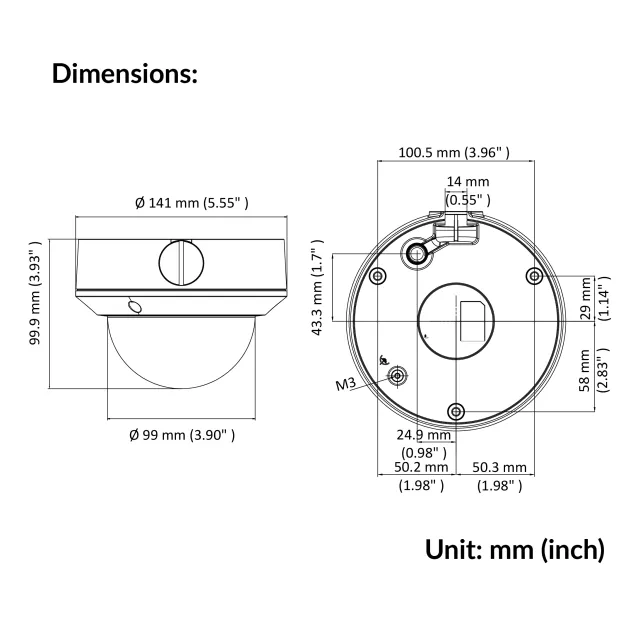

Dimensions |
Ø 141 mm × 99.9 mm (Ø 5.55″ × 3.93″) |
Weight |
Approx. 800 g (1.76 lb.) |
Datasheet
