Description

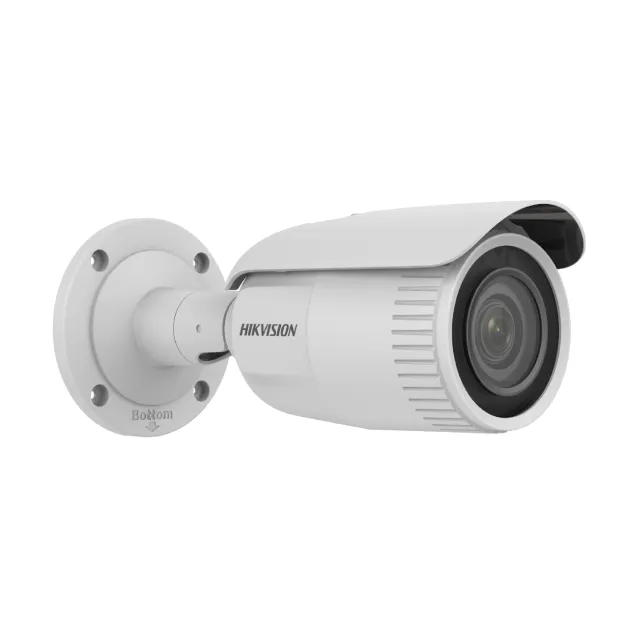

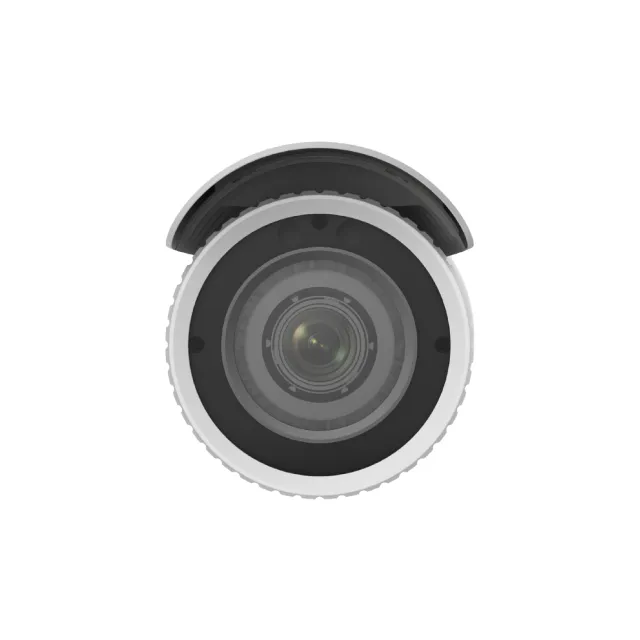

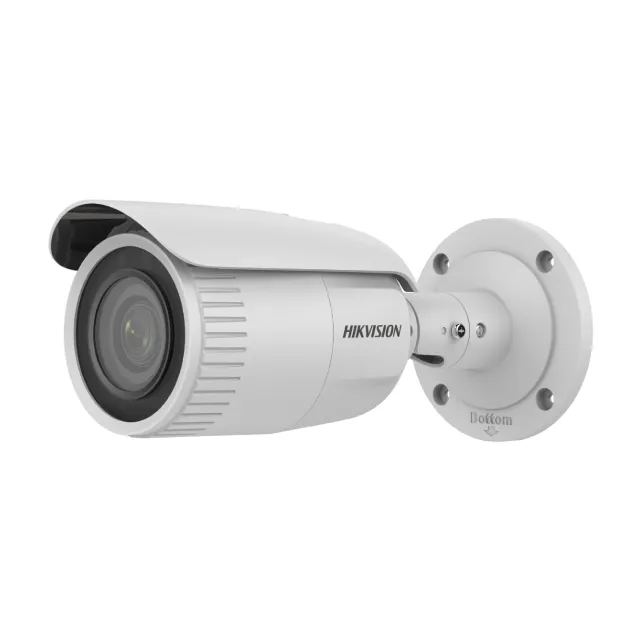

DS-2CD1623G0-IZ – 2 MP Varifocal Bullet Network Camera
- 1/2.8″ progressive scan CMOS
- 1920 × 1080@30fps
- 2.8mm to 12mm varifocal lens
- H.265+, H.265, H.264+, H.264
- Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON)
- BLC/3D DNR/ROI
- Up to 30 m IR range
- IP67
- Digital WDR
- Built-in micro SD/SDHC/SDXC card slot, up to 128 GB
Product Specifications
Image Sensor |
1/2.8″ Progressive Scan CMOS |
Min. Illumination |
Color: 0.01 Lux @(F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON) |
Angle Adjustment |
Pan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360° |
Wide Dynamic Range |
Digital WDR |
Day & Night |
IR cut filter |
Field of Vision |
98°to 34° (H), 51°to 19° (V), 115°to 40° (D) |
IR Distance |
Up to 30 m |
Video Compression |
H.265/H.264 |
Max. Resolution |
1920 × 1080 |
Max. Frame |
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
|
Network Storage |
Support Micro SD/SDHC/SDXC card (128G ), local storage and ANR |
Power |
12 VDC ± 20%, 5.5 mm coaxial power plug PoE (802.3af, class 3) |
Working Temperature |
-30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing) |
Material |
Metal |
Protection |
IP67 TVS 2000V lightning protection, surge protection and voltage transient protection |

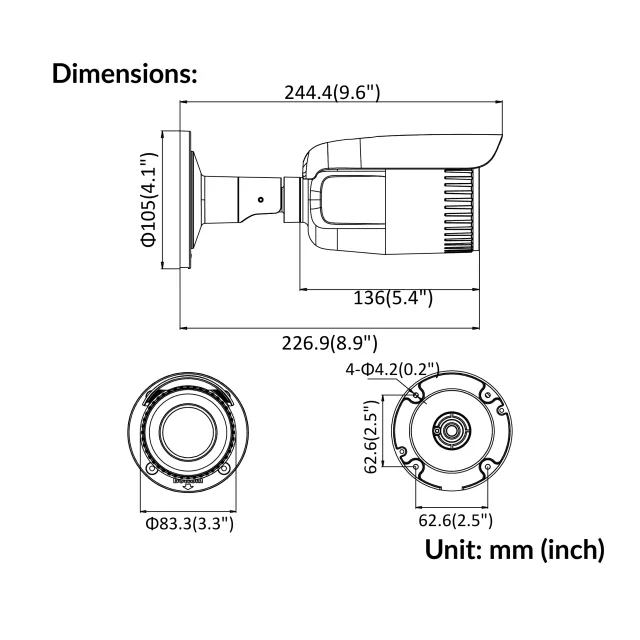

Dimensions |
Φ 105 mm × 244.4 mm (Φ 4.1″ × 9.6″) |
Weight |
Approx. 1015 g (2.2 lb.) |
Datasheet
