Description

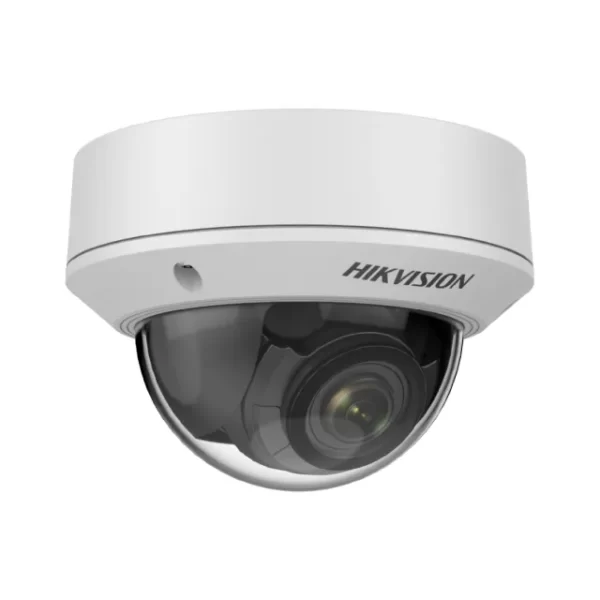

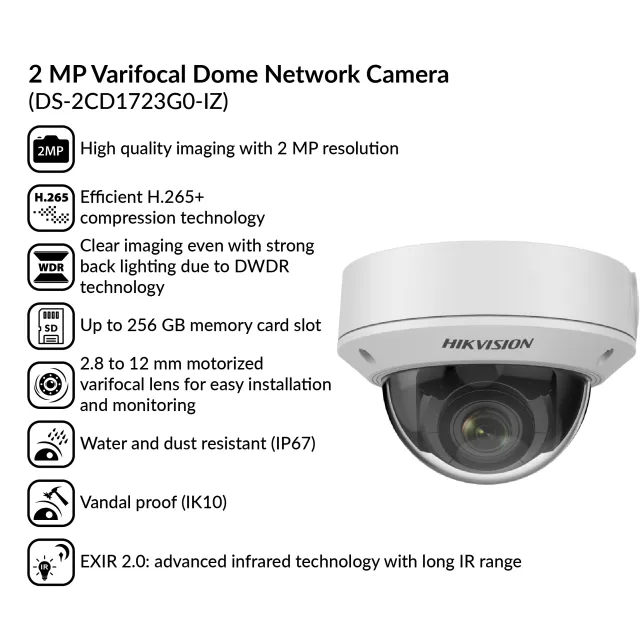

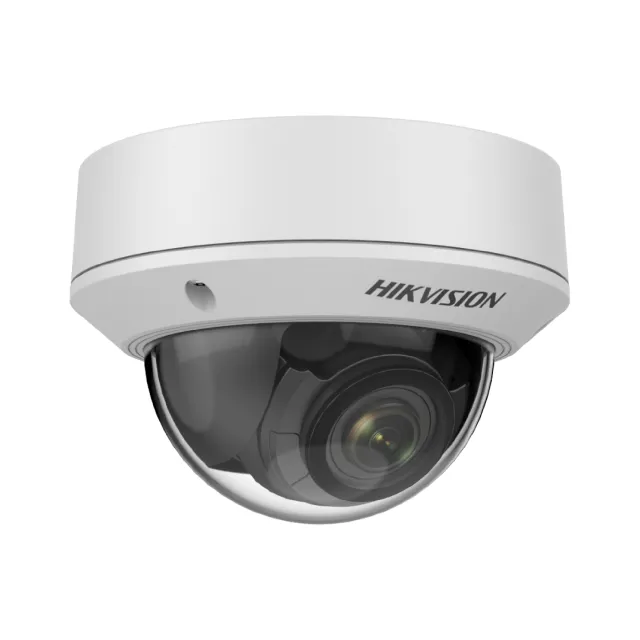

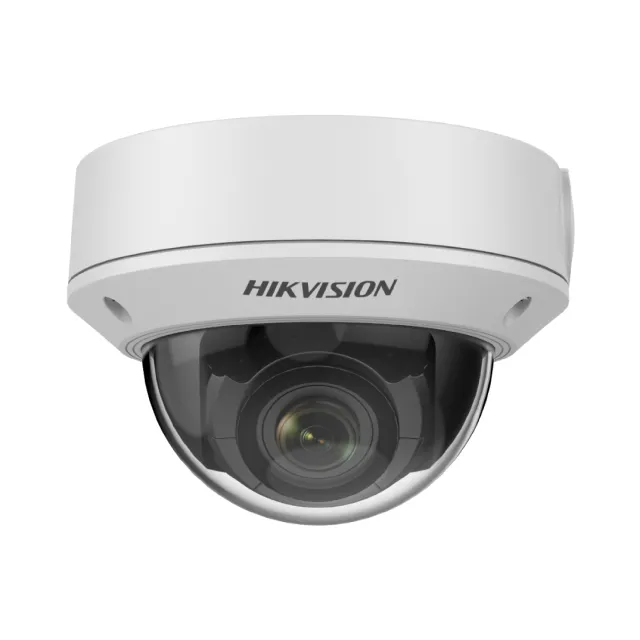

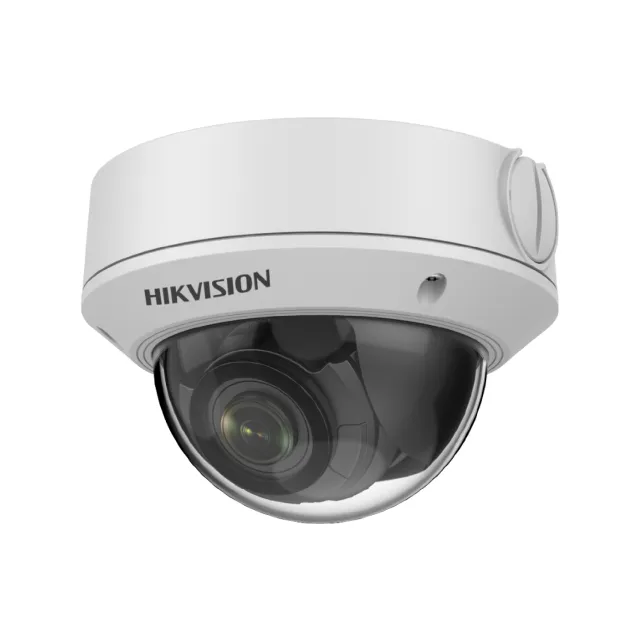

DS-2CD1723G0-IZ – 2 MP Varifocal Dome Network Camera
- High quality imaging with 2 MP resolution
- Efficient H.265+ compression technology
- Clear imaging even with strong back lighting due to DWDR technology
- Up to 256 GB SD card slot for storage
- 2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
- Water and dust resistant (IP67), vandal proof (IK10)
- EXIR 2.0: advanced infrared technology with long IR range
Product Specifications
Image Sensor |
1/2.7″ Progressive Scan CMOS |
Min. Illumination |
Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR |
Angle Adjustment |
Pan: 0° to 355°, tilt: 0° to 70°, rotation: 0° to 355° |
Wide Dynamic Range |
Digital WDR |
Day & Night |
IR Cut Filter |
Field of Vision |
2.8 to 12 mm: 96° to 36° (H), 51° to 20° (V), 113° to 42° (D) |
IR Distance |
Up to 30 m |
Video Compression |
H.265+/H.265/H.264+/H.264 |
Max. Resolution |
1920 × 1080 |
Max. Frame |
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
|
Power |
12 VDC ± 25%, 0.8 A, max. 10 W, Ø 5.5 mm coaxial power plug PoE: (802.3af, Class 3, 36 V to 57 V), 0.2 A to 0.32 A, max. 11.5 W |
Working Temperature |
-30 °C to +60 °C (-22 °F to +140 °F). Humidity 95% or less (non-condensing) |
Protection |
IP67 (IEC 60529-2013), IK10 (IEC 62262:2002) |

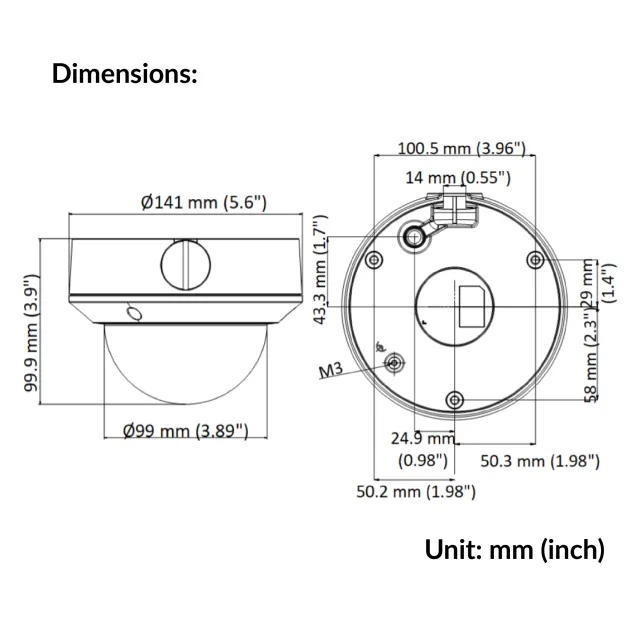

Dimensions |
Ø 141 mm × 99.9 mm (5.6″ × 3.9″) |
Weight |
Approx. 820 g (1.8 lb.) |
