Description

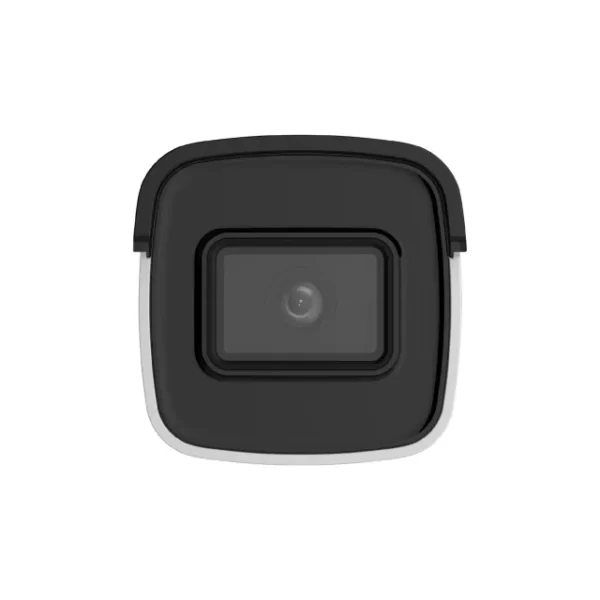

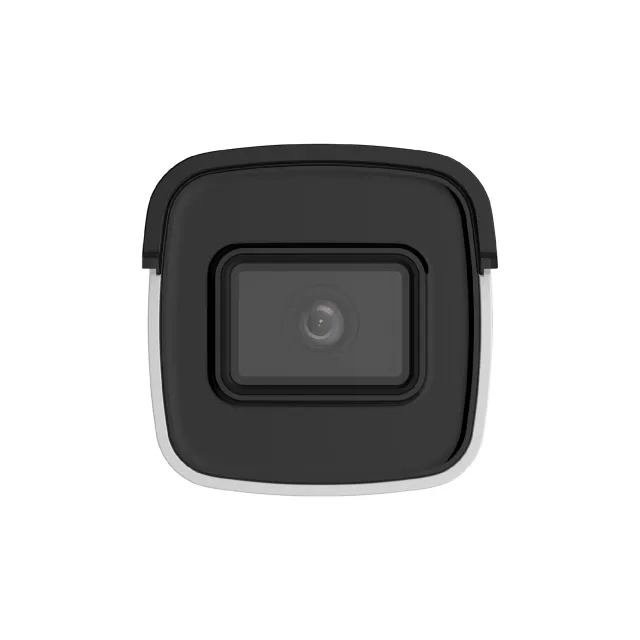

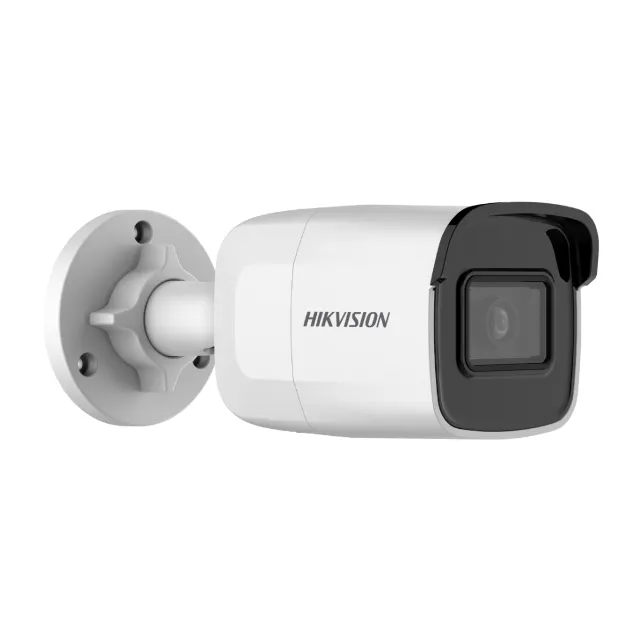

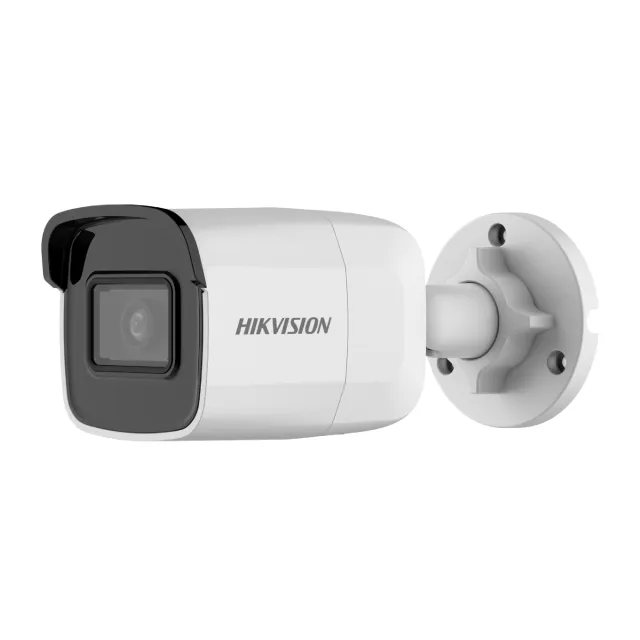

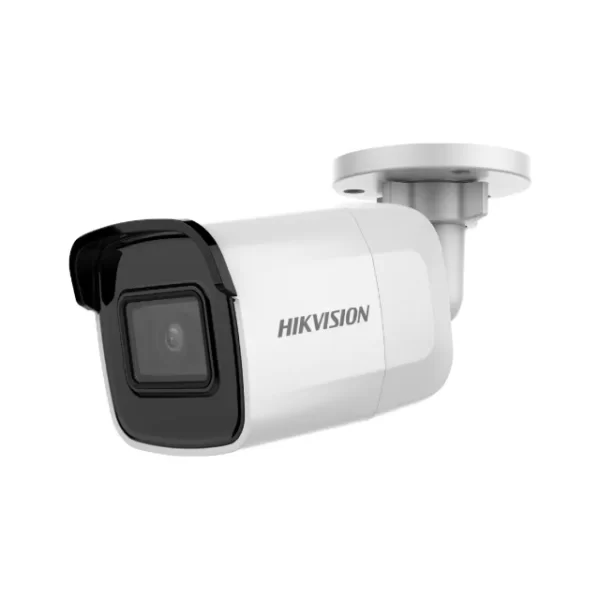

DS-2CD2021G1-I – 2 MP IR Fixed Network Bullet Camera
- High quality imaging with 2 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Water and dust resistant (IP67)
- Support up to 256 GB SD card storage
Product Specifications
Image Sensor |
1/2.7″ Progressive Scan CMOS |
Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
Day & Night |
IR Cut Filter |
Angle Adjustment |
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
Field of Vision |
2.8 mm: 111.6° (H), 59.1° (V), 133.9° (D)
|
IR Distance |
Up to 30 m |
Video Compression |
H.265/H.264 |
Max. Resolution |
1920 × 1080 |
Max. Frame |
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
|
Power |
12 VDC ± 25% PoE: 802.3af, Class 3 |
Working Temperature |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) |
Protection |
IP67 (IEC 60529-2013) |
Material |
Metal & Plastic |

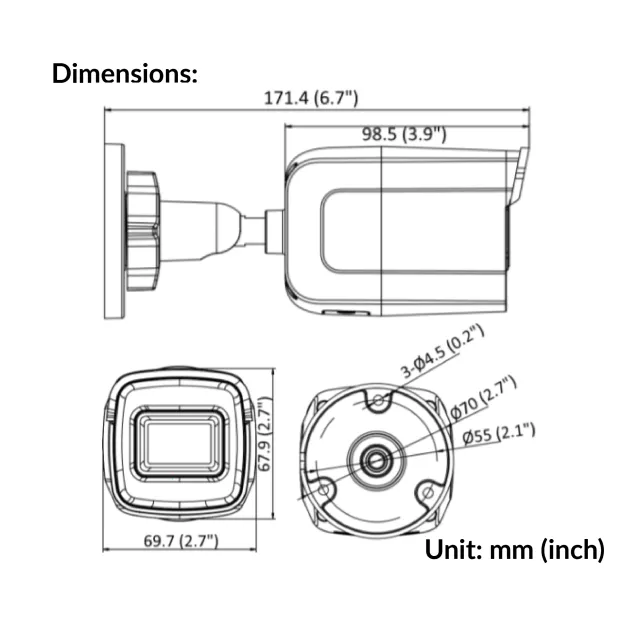

Dimensions |
69.7 mm × 67.9 mm × 171.4 mm (2.7″ × 2.7″ × 6.7″) |
Weight |
Approx. 350 g (0.8 lb.) |
