Description

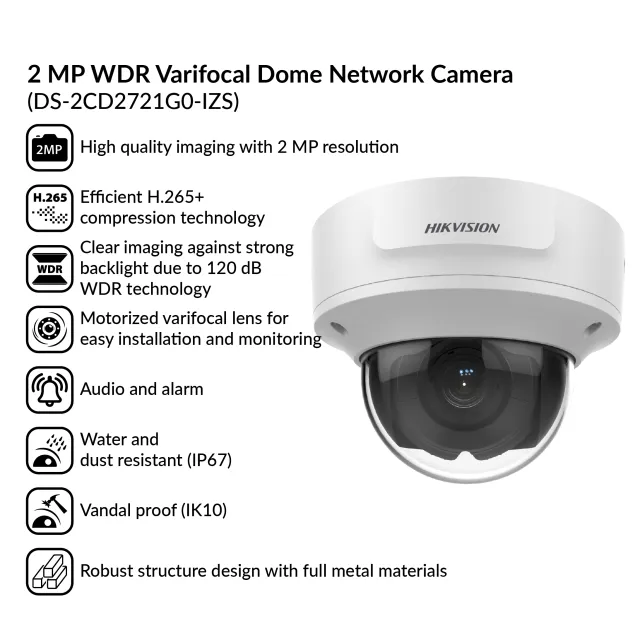

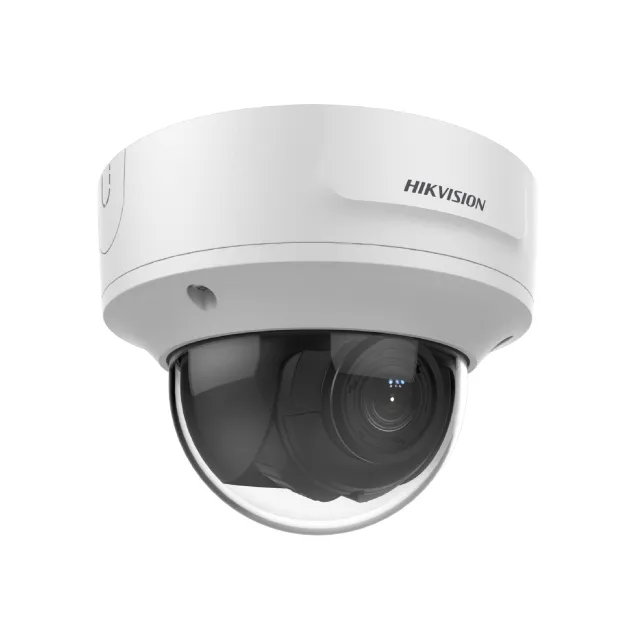

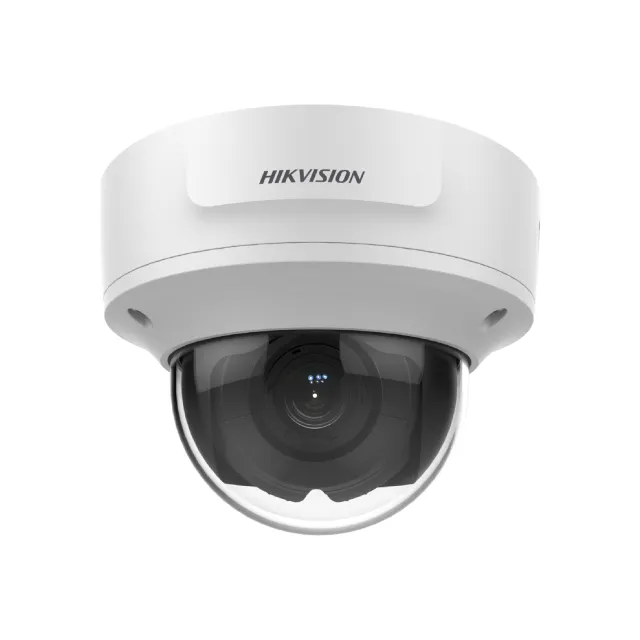

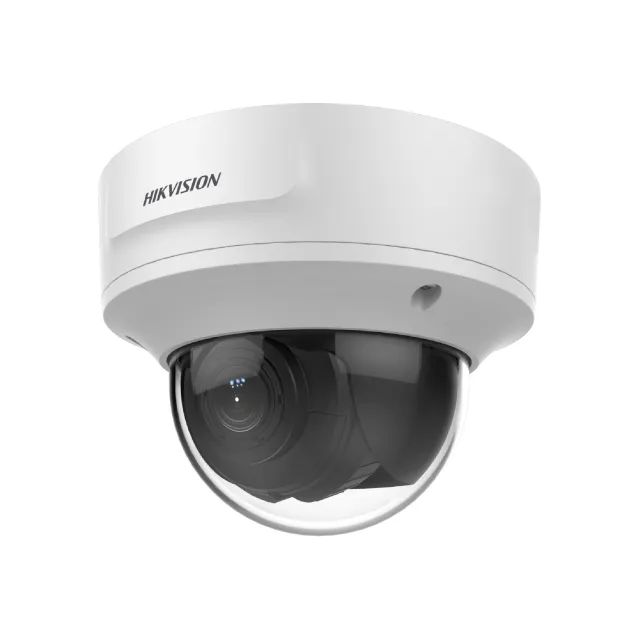

DS-2CD2721G0-IZS – 2 MP IR VF Dome Network Camera
- 1/2.8″ Progressive Scan CMOS
- 1920 × 1080@30fps
- 2.8 to 12 mm varifocal lens
- Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @(F2.0, AGC ON);
- H.265+, H.265, H.264+, H.264
- 120dB WDR
- 2 Behavior analyses
- BLC/3D DNR/ROI
- Built-in micro SD/SDHC/SDXC card slot, up to 128 GB
- IP67, IK10
Product Specifications
Image Sensor |
1/2.8″ Progressive Scan CMOS |
Min. Illumination |
Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @(F2.0, AGC ON); B/W: 0.001 Lux @(F1.2, AGC ON), 0.0028 Lux @(F2.0, AGC ON), 0 Lux with IR |
Day & Night |
IR Cut Filter |
WDR |
120dB |
3-Axis Adjustment |
Pan: 0°to 355°, tilt: 0°to 75°, rotation: 0°to 355° |
Field of Vision |
99.6°to 35° (H), 53.5°to 20° (V), 118.6°to 40.2° (D) |
IR Distance |
Up to 30 m |
Video Compression |
H.265/H.264 |
Max. Resolution |
1920 × 1080 |
Max. Frame |
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
|
Power |
12 VDC ± 25%, Φ 5.5 mm coaxial plug power PoE (802.3af, class 3) |
Working Temperature |
-30 °C to +60 °C (22 °F to +140 °F), humidity 95% or less (non-condensing) |
Protection |
IP67, IK10 |
Material |
Front cover & Base: metal, bubble: plastic |

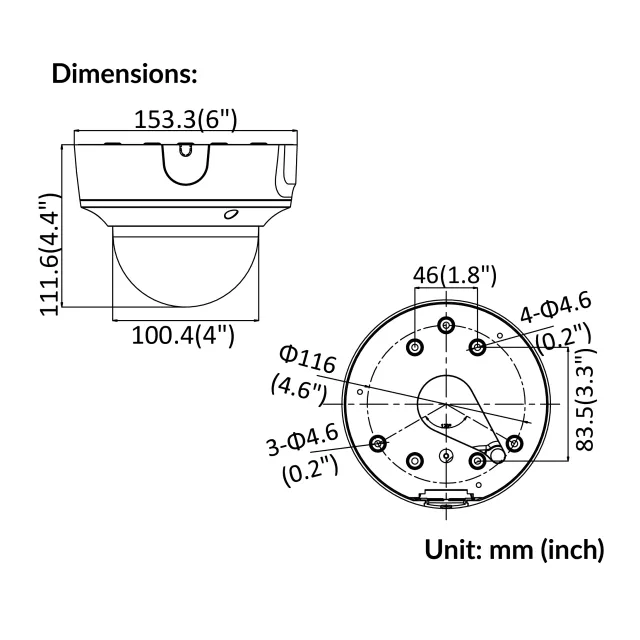

Dimensions |
Φ 153.3 × 111.6 mm (Φ 6″ × 4.4″) |
Weight |
Approx. 880 g (1.9 lb.) |
