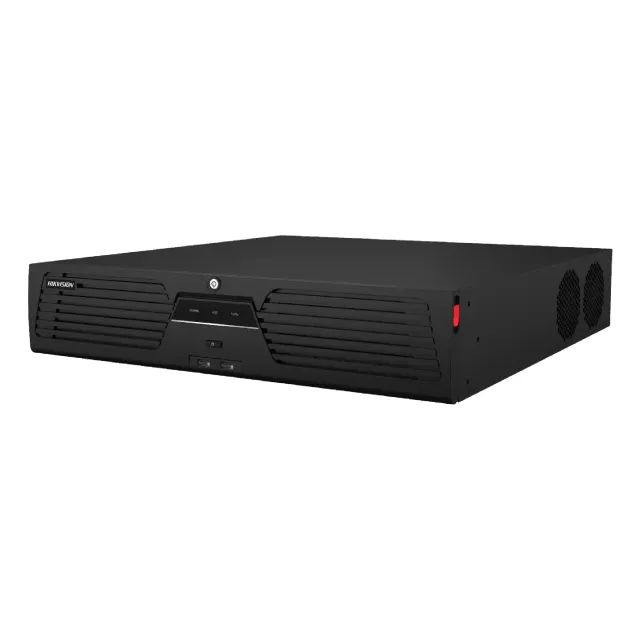

32-ch 2U 8K NVR | DS-9632NI-M8
32-ch 2U 8K NVR | DS-9632NI-M8 - Image 2
32-ch 2U 8K NVR | DS-9632NI-M8 - Image 3
32-ch 2U 8K NVR | DS-9632NI-M8 - Image 4
32-ch 2U 8K NVR | DS-9632NI-M8 - Image 5

32-ch 2U 8K NVR | DS-9632NI-M8

Original price was: $3,000.00.Current price is: $2,500.00.

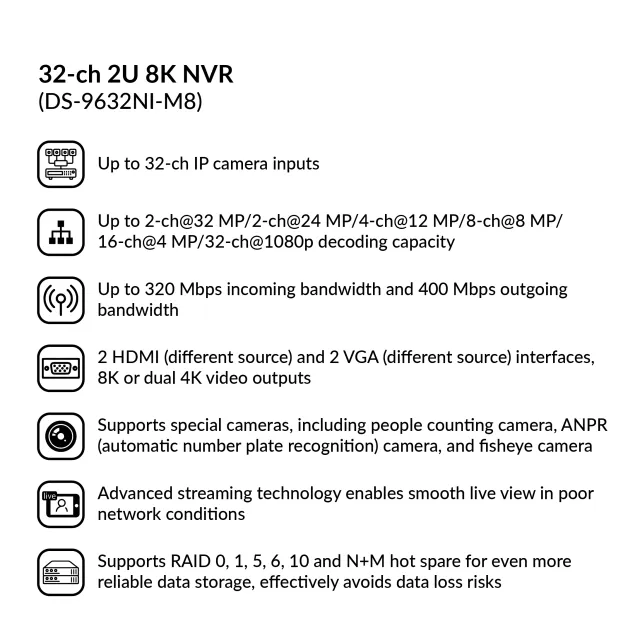

DS-9632NI-M8

– Up to 32-ch IP camera inputs
– Supports RAID 0, 1, 5, 6, 10 and N+M hot spare
– 2 HDMI (different source) and 2 VGA (different source); 8K or dual 4K video outputs
– Supports special cameras, (people counting camera, ANPR camera, and fisheye camera
Categories: , ,

Description

DS-9632NI-M8
32-ch 2U 8K NVR

Product Specifications

IP Video Input
32-ch
Incoming Bandwidth
320 Mbps
Outgoing Bandwidth
400 Mbps
HDMI 1 Output
8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI 2 Output
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p
VGA 1 Output
1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA 2 Output
1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Video Output Mode
HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
RAID Type
RAID0, RAID1, RAID5, RAID6, RAID10
SATA
8 SATA interfaces
eSATA
1 eSATA interface
Capacity
Up to 14 TB capacity for each disk
Chassis
2U chassis

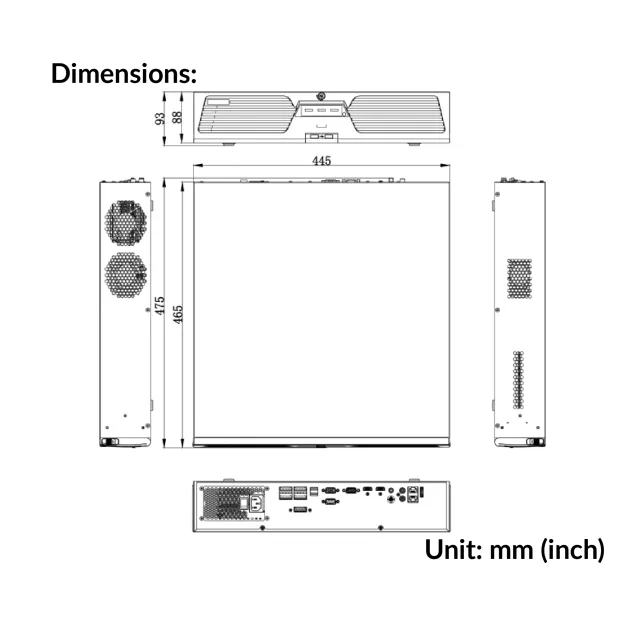

Dimension (W × D × H)
445 × 465 × 93 mm ( 17.5″× 18.3″ × 3.7″)
Weight
Weight

Datasheet

Download Datasheet
