Description

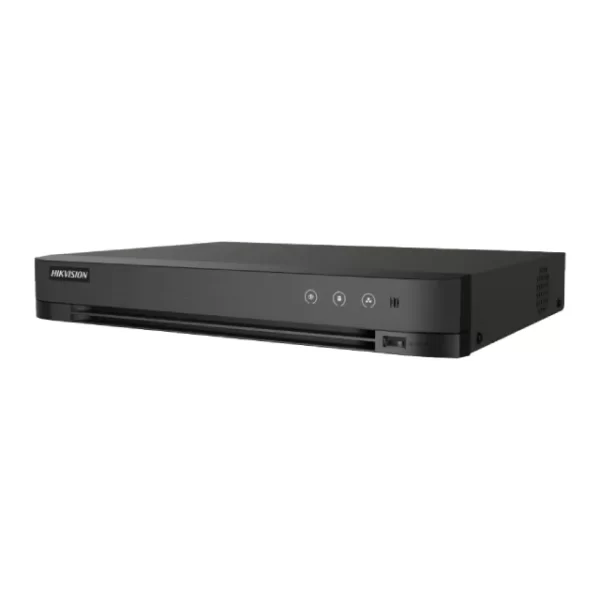

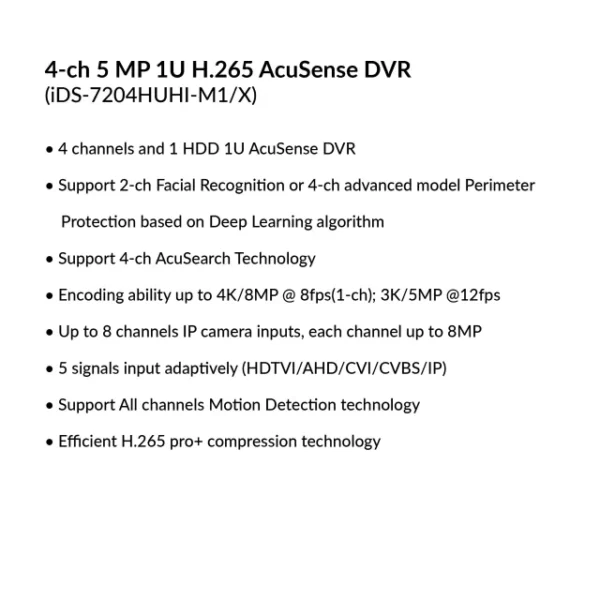

4-ch 5 MP 1U H.265 AcuSense DVR
iDS-7204HUHI-M1/X
Product Specifications
Facial Recognition |
Face Picture Library |
Up to 16 face picture libraries |
Perimeter Protection |
Human/Vehicle Analysis |
Up to 4-ch |
Video and Audio |
IP Video Input |
2-ch (up to 6-ch) Up to 8 MP resolution IP enhanced mode on: 4-ch (up to 8-ch), each up to 4 Mbps Support H.265+/H.265/H.264+ /H.264 IP cameras |
Recording |
Video Compression |
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
Audio Bitrate |
64 Kbps |
|
Network |
Total Bandwidth |
96 Mbps |
Network Interface |
1, RJ45 10/100 Mbps self-adaptive Ethernet interface |
|

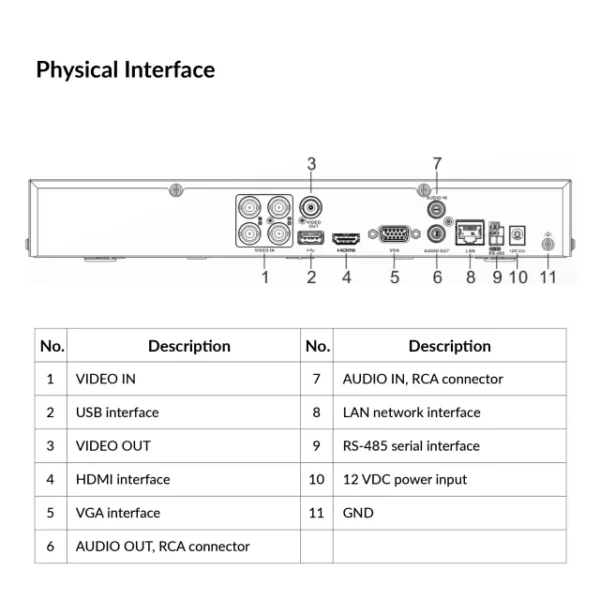

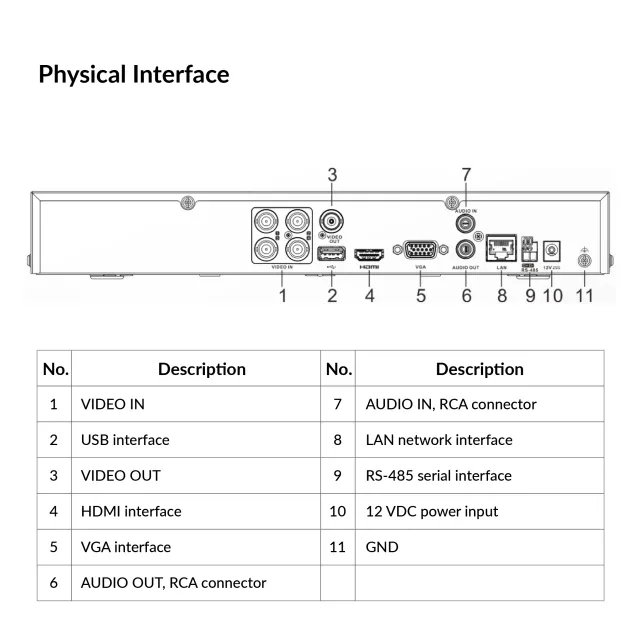

Auxiliary Interface |
SATA |
1 SATA interface |
Capacity |
up to 12TB capacity for each disk |
|
General |
Power Supply |
12 VDC, 1.5 A |
Consumption |
≤ 10 W (without HDD) |
|
Working Temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
|

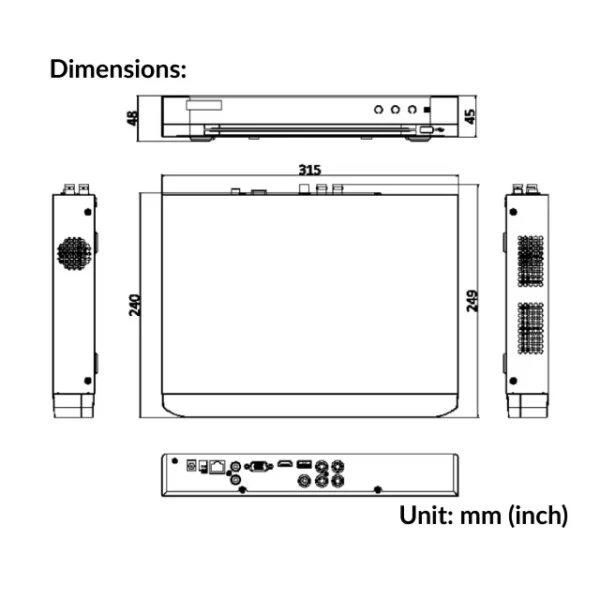

Dimension (W × D × H) |
319 × 235 × 48 mm (12.6 × 9.3 × 1.9 inches) |
|
Weight |
≤ 1.16 kg (2.6 lb) |
Datasheet
