Description

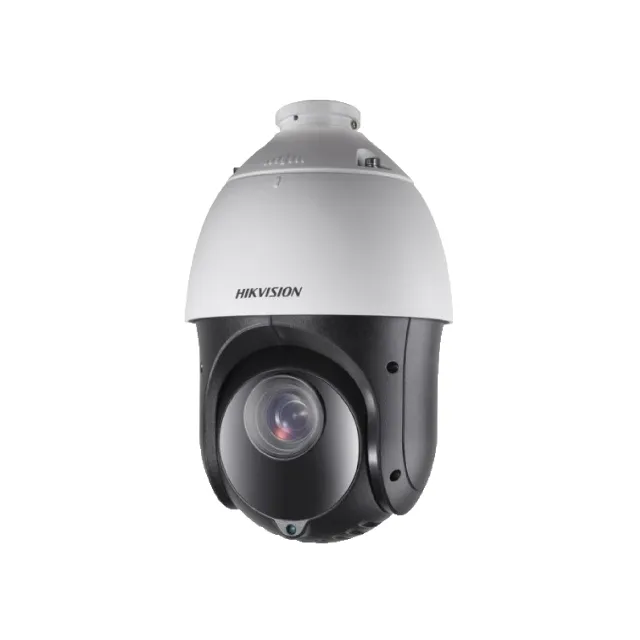

2 MP IR Turbo 4-Inch Speed Dome
Hikvision DS-2AE4215TI-D(E) IR Turbo 4-Inch Speed Dome is able to capture high quality images in poor light environment. The black anti-reflective glass increases the luminousness which helps IR distance reach up to 100 m. The embedded CMOS chip makes WDR, and real-time 1920 × 1080 resolution possible. With the help of the 15× optical zoom, and IR cut filter, the camera offers more details over an expansive area.
Product Specifications
Image Sensor |
1/2.8″ progressive scan CMOS |
Max. Image Resolution |
1920 × 1080 |
Frame Rate |
50Hz: 25fps @(1920 × 1080)
|
Min. Illumination |
Color: 0.005 Lux @(F1.6, AGC ON)
|
White Balance |
AUTO/MANUAL/HAUTO/ATW/INDOOR/OUTDOOR |
DNR |
3D DNR |
WDR |
≥ 120 dB |
Day & Night |
IR cut filter |
Digital Zoom |
16× |
Focal Length |
5 mm to 75 mm, 15× Optical |
Horizontal Field of View |
53.8° to 4.0° (wide-tele) |
Min. Working Distance |
10 mm to 1500 mm (wide to tele) |
Zoom Speed |
Approx. 2.4 s (optical, wide to tele) |
Pan Range |
360° endless |
Tilt Range |
-15° to 90° (auto flip) |
Video Output |
Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC) |
Power |
12 VDC
|
Working Temperature |
-30°C to 65°C (-22°F to 149°F) |
Protection Level |
IP66 standard (outdoor dome)
|
Mounting |
Various mounting modes optional |

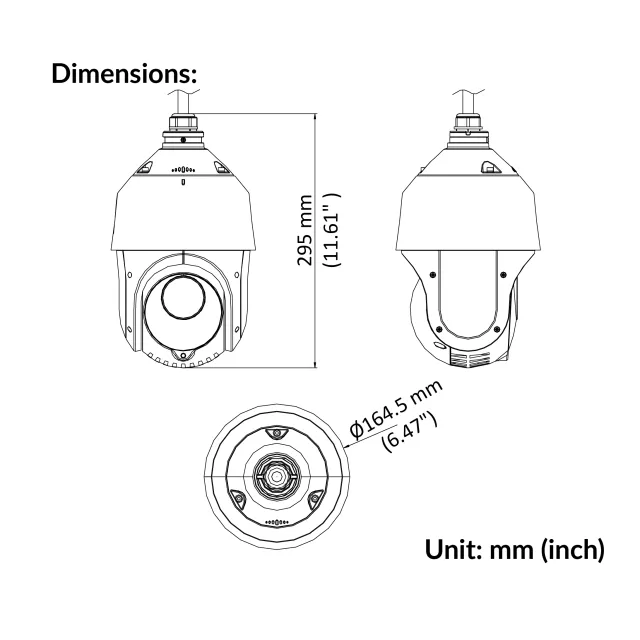

Dimension |
Ø 164.5 mm × 295 mm (Ø 6.47″ × 11.61″) |
Weight (approx.) |
2Kg (4.41Ib.) |
Datasheet
