Description

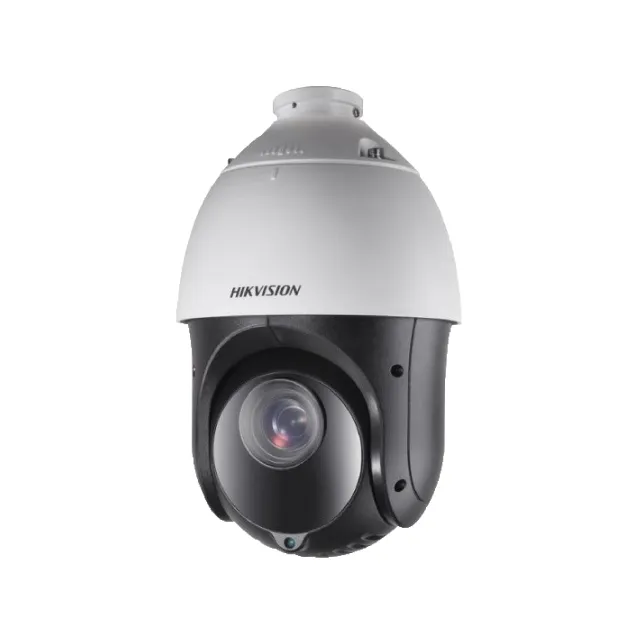

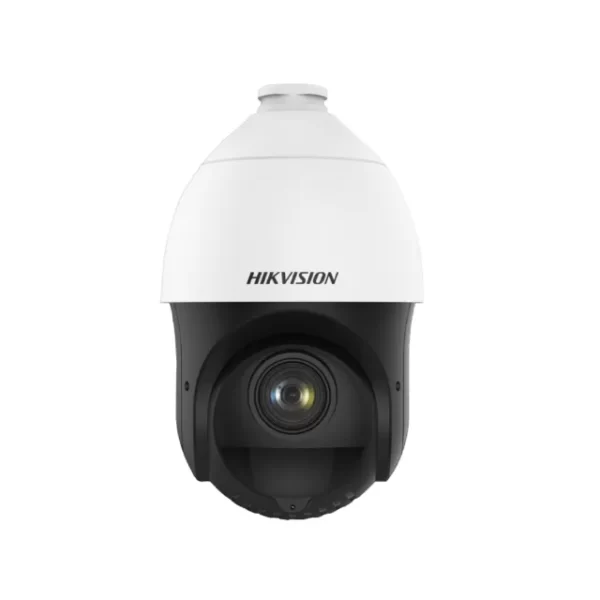

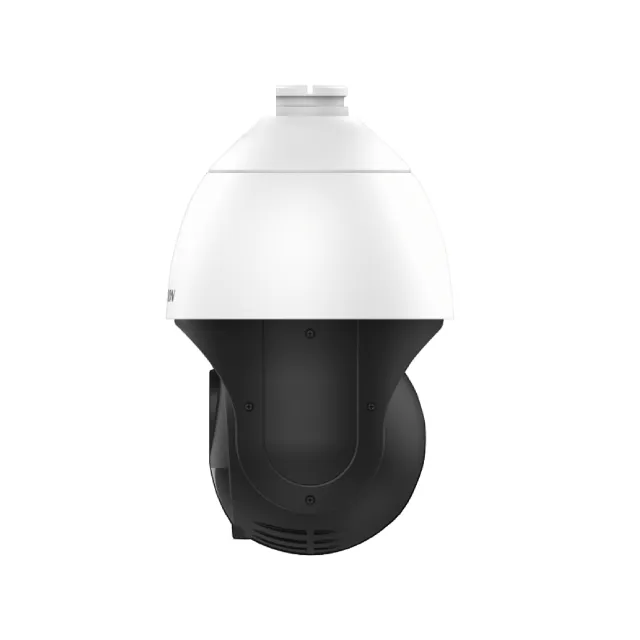

DS-2DE4225IW-DE (S5) 2 MP 25 × IR Network Speed Dome
Hikvision DS-2DE4225IW-DE (S5) 2 MP 25 × IR Network Speed Dome adopts 1/2.8″ progressive scan CMOS chip. With the 25 × optical zoom lens , the camera offers more details over expansive areas. This series of cameras can be widely used for wide ranges of high-definition, such as the rivers, roads, railways, airports, squares, parks, scenic spots, and venues, etc. Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.
Product Specifications
Image Sensor |
1/2.8” progressive scan CMOS |
Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR |
WDR |
120 dB WDR |
Focal Length |
4.8 mm to 120 mm, 25 × Optical |
Field of View |
57.6° to 2.5° (H), 34.4° to 1.4° (V), 64.5° to 2.9° (D) |
Aperture Range |
F1.6 |
IR Distance |
100 m |
Video Compression |
H.265, H.264, MJPEG |
Max. Resolution |
1920 × 1080 |
Max. Frame |
1920 × 1080@30fps |
Power |
12 VDC, PoE(802.3at) |
Working Temperature |
-30°C to 65°C (-22°F to 149°F); humidity lower than 90%RH |
Protection Level |
IP66, 4000V Lightning Protection, Surge Protection and Voltage Transient Protection |
Material |
ADC 12, PC, PC+10% GF |

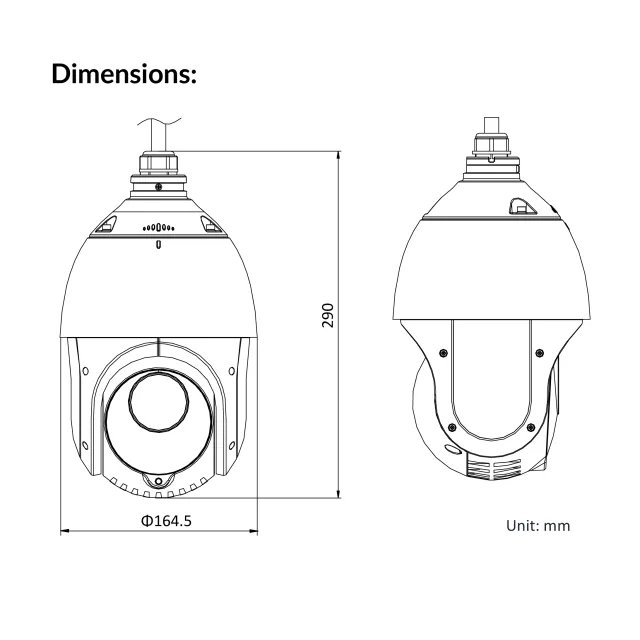

Dimensions |
Φ 164.5 mm × 290 mm (Φ 6.48″ × 11.42″) |
Weight |
Approx. 2 kg (4.41 lb) |
Datasheet
