DS-2DE3A404IWG-E/W
4MP 4x Zoom IR Wi-Fi Mini PT Dome Network Camera
Hikvision DS-2DE3A404IWG-E/W 4MP 4× IR Wi-Fi Network PTZ Camera can be widely used in multiple indoor and outdoor scenes, such as the corridor, office, convenience store, and restaurant, etc.
Product Specifications
Image Sensor |
1/2.8″ progressive scan CMOS |
Max. Resolution |
2560 × 1440 |
Min. Illumination |
Color: 0.005 Lux @(F1.5, AGC ON); B/W: 0.001 Lux @(F1.5, AGC ON); 0 Lux with IR |
Day & Night |
IR cut filter |
Zoom |
4 × optical, 16 × digital |
Focal Length |
2.8 to 12 mm |
FOV |
Horizontal field of view: 96.7° to 31.6° (wide-tele)
|
Focus |
Auto, semi-auto, manual |
Zoom Speed |
Approx. 2 s (optical lens, wide-tele) |
Supplement Light Range |
IR distance: up to 50 m, white light distance: up to 6 m |
Movement Range (Pan) |
0° to 350° |
Movement Range (Tilt) |
0° to 90° |
Main Stream |
50 Hz: 25 fps (2560 × 1440, 1920 × 1080
|
Wide Dynamic Range (WDR) |
120 dB |

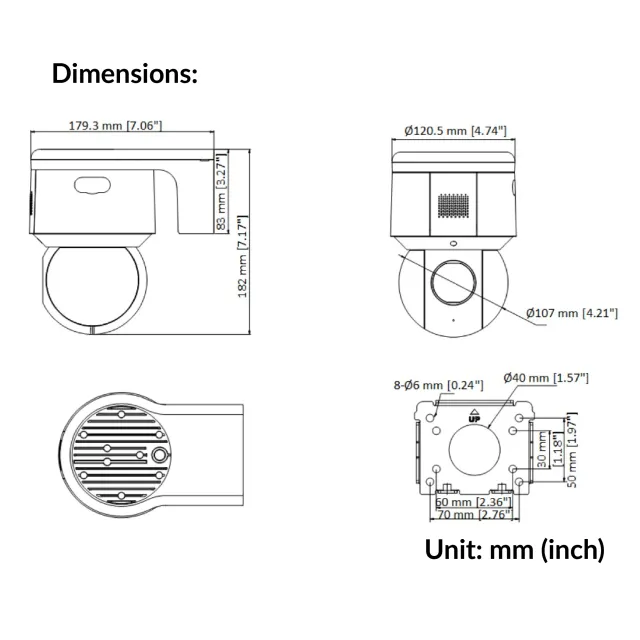

Dimension |
179.3 mm × 120.5 mm × 182 mm (7.06″ × 4.74″ × 7.17″) |
Weight |
Approx. 1.125 kg (2.48 lb.) |
Material |
ADC12 + PC |
Protection |
IP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage transient protection |
