Description

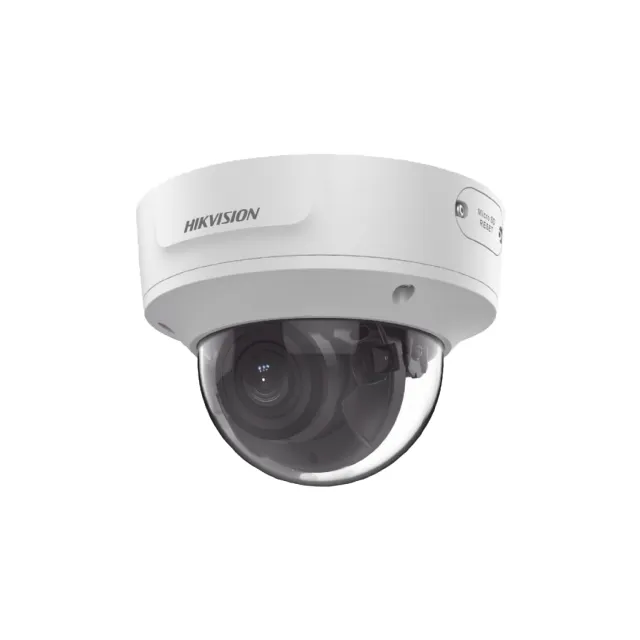

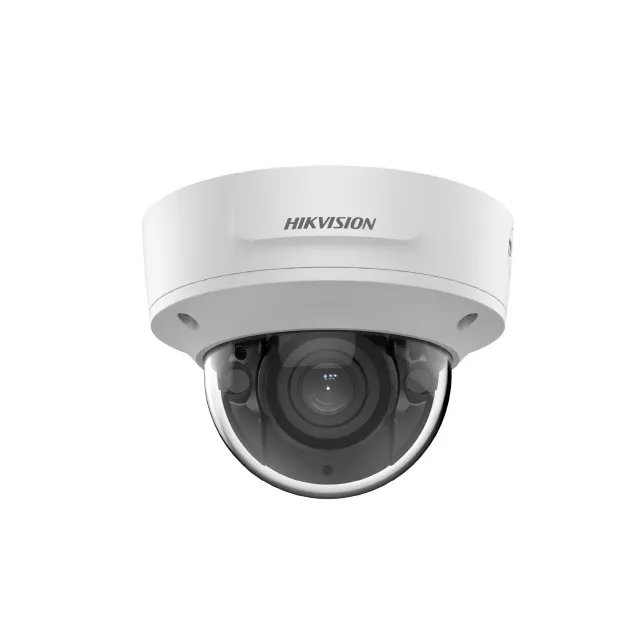

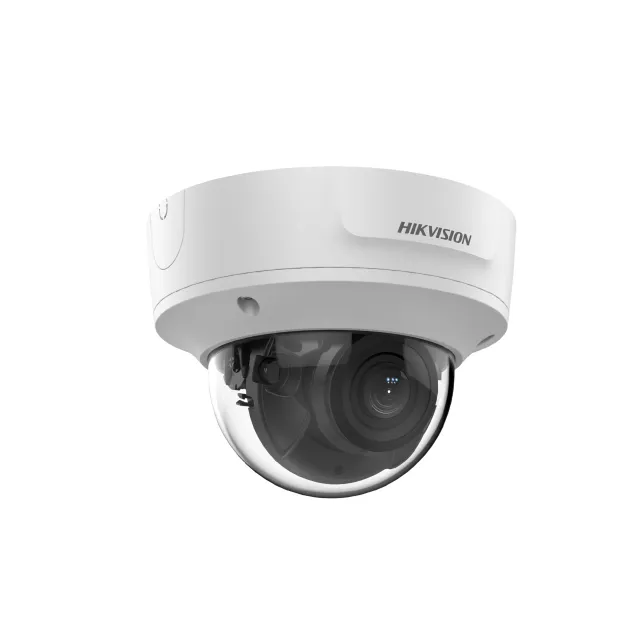

DS-2CD2743G2-IZS
4 MP AcuSense Motorized Varifocal Dome Network Camera
Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.
Product Specifications
Image Sensor |
1/3″ Progressive Scan CMOS |
Wide Dynamic Range |
120 dB |
Angle Adjustment |
Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
Lens Type & FOV |
2.8 to 12 mm, horizontal FOV 95.8° to 29.2°, vertical FOV 50.6° to 16.4°, diagonal FOV 114.6° to 33.4° |
DORI |
2.8 to 12 mm: D: 64 m to 200 m, O: 25.4 m to 79.4 m, R: 12.8 m to 40 m, I: 6.4 m to 20 m |
IR Range |
Up to 40 m |
Max. Resolution |
2688 × 1520 |
Main Stream |
50Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
|
Material |
Upper cover and base: Metal
|
On-board Storage |
Built-in micro SD, up to 256 GB |

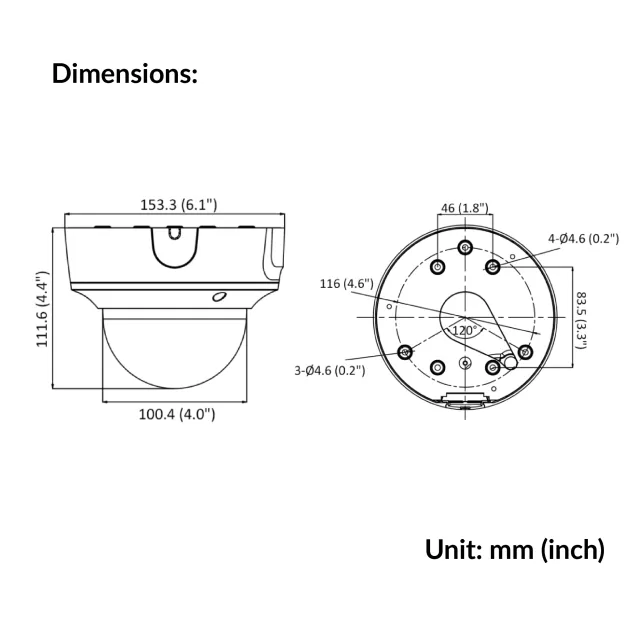

Camera Dimension |
Ø 153.3 × 111.6 mm (Ø6.1″ × 4.4″ |
Camera Weight |
Approx. 880 g (1.9 lb.) |
Protection |
IP67 (IEC 60529-2013), IK10 (IEC 62262:2002) |
