Description
DS-2CD1743G0-IZ

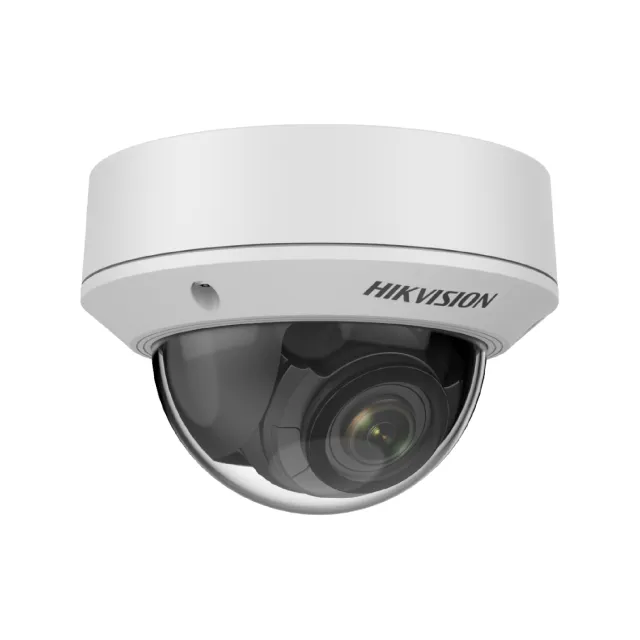

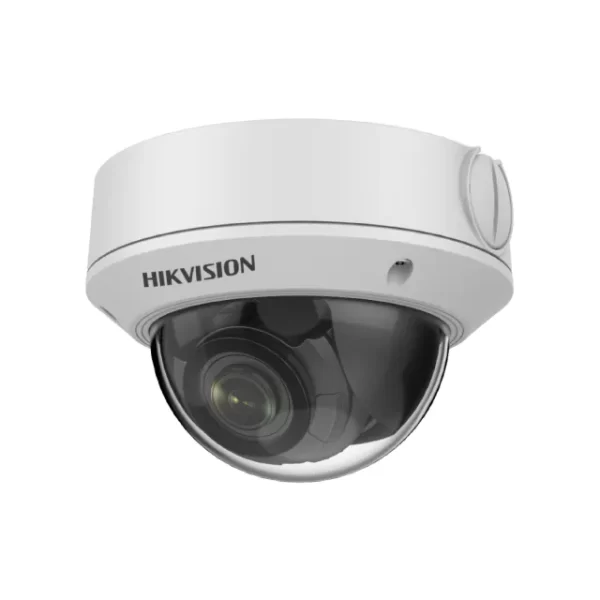

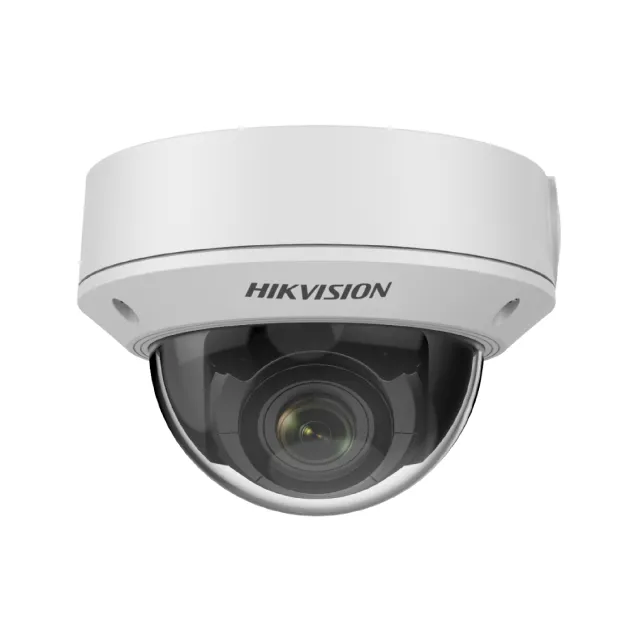

4 MP Varifocal Dome Network Camera
- Efficient H.265+ compression technology
- High quality imaging with 4 MP resolution
- Up to 256 GB memory card slot for storage
- Water and dust resistant (IP67) and vandal proof (IK10)
- EXIR 2.0: advanced infrared technology with long IR range
- Clear imaging even with strong back lighting due to 120 dB WDR
- 2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
Product Specifications
Image Sensor |
1/3″ Progressive Scan CMOS |
Min. Illumination |
Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR |
Angle Adjustment |
Pan: 0° to 355°, tilt: 0° to 70°, rotation: 0° to 355° |
Wide Dynamic Range |
120 dB |
Field of Vision |
2.8 to 12 mm: 102° to 31° (H), 54° to 17° (V), 123° to 35° (D) |
IR Distance |
Up to 30 m |
Video Compression |
H.265+/H.265/H.264+/H.264 |
Max. Resolution |
2560 × 1440 |
Max. Frame |
50 Hz: 20 fps (2560 × 1440) 25 fps (2304 × 1296, 1920 × 1080, 1280 × 720)
|
Power |
12 VDC ± 25%, 0.8 A, max. 10 W, Ø 5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.32 A to 0.2 A, max. 11.5 W |
Working Temperature |
-30 °C to 60 °C (22 °F to +140 °F). Humidity 95% or less (non-condensing) |
Protection |
IP67 (IEC 60529-2013), IK10 (IEC 62262:2002) |
Material |
Metal |

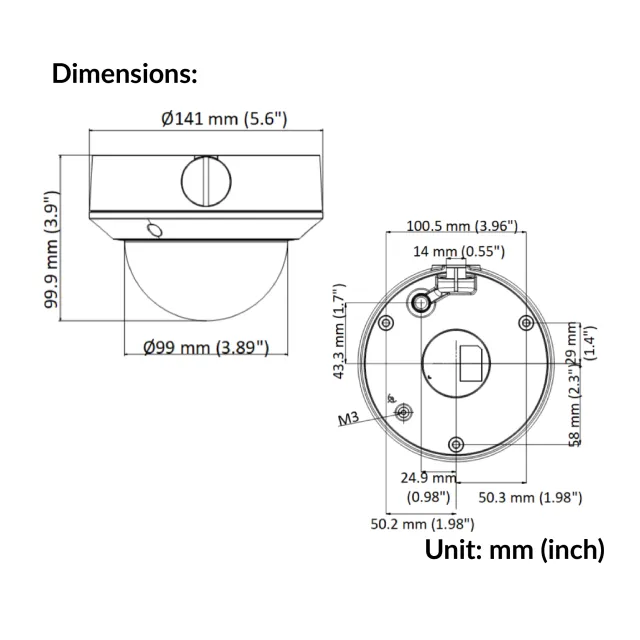

Dimensions |
Ø 141 mm × 99.9 mm (Ø 5.6″ × 3.9″) |
Weight |
Approx. 820 g (1.8 lb.) |
Datasheet
