Description

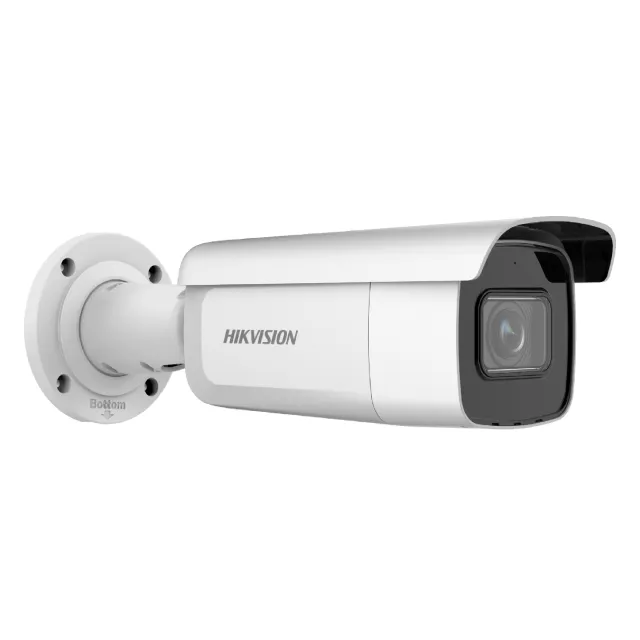

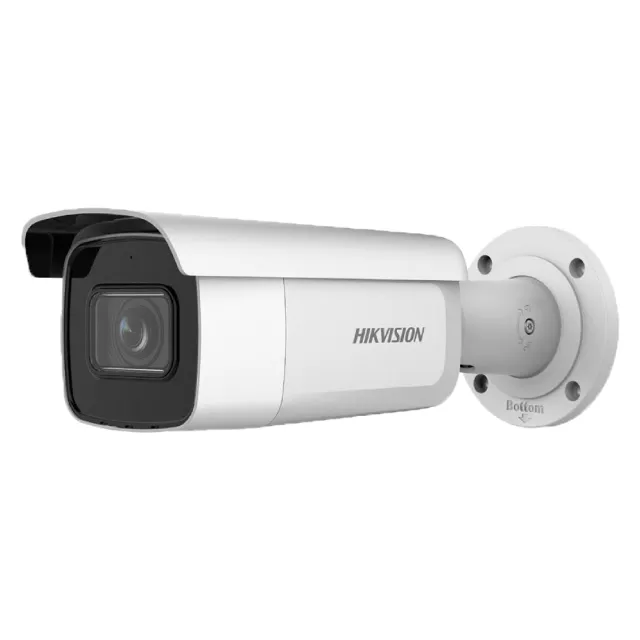

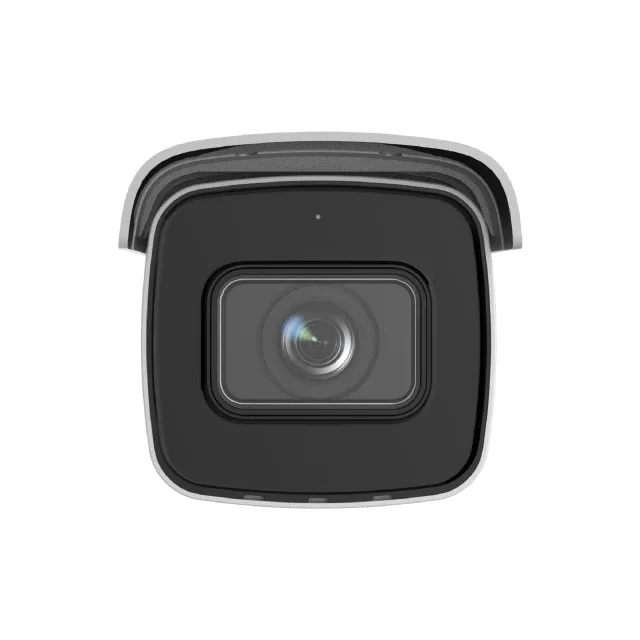

DS-2CD2643G2-IZS – 4 MP AcuSense Motorized Varifocal Bullet Network Camera
Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.
Product Specifications
Image Sensor |
1/3″ Progressive Scan CMOS |
Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on |
Day & Night |
ICR Cut |
WDR |
120 dB |
Angle Adjustment |
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
Field of Vision |
2.8 to 12 mm: 95.8° to 29.2° (H), 50.6° to 16.4° (V), 114.6° to 33.4° (D) |
IR Distance |
Up to 60 m |
Video Compression |
H.265/H.264/H.264+/H.265+ |
Max. Resolution |
2688 × 1520 |
Max. Frame |
50Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
|
Environment Noise Filtering |
Yes |
Power |
12 VDC ± 25% PoE: 802.3at, Class 4 |
Working Temperature |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
Protection |
IP67 (IEC 60529-2013), IK10 (IEC 62262: 2002) |
Material |
Aluminium alloy body |

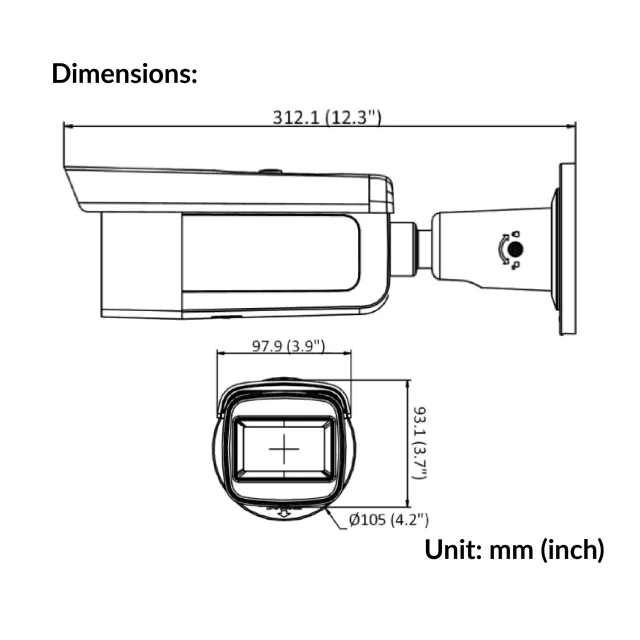

Dimensions |
308.5 × 97.9 × 93 mm (12.2″ × 3.9″ × 3.7″) |
Weight |
Approx. 1390 g (3.1 lb.) |
Datasheet
