Sale!

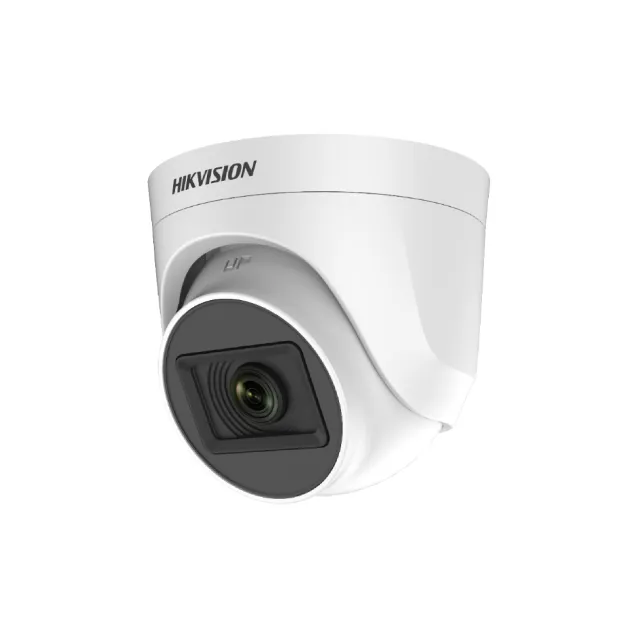

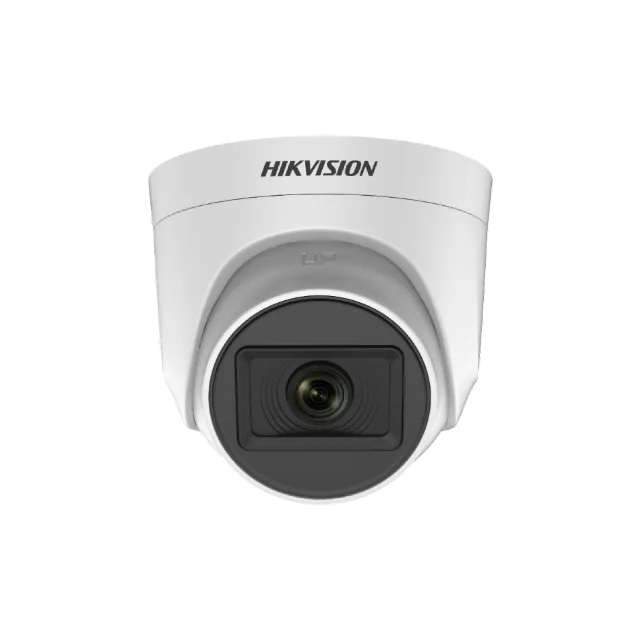

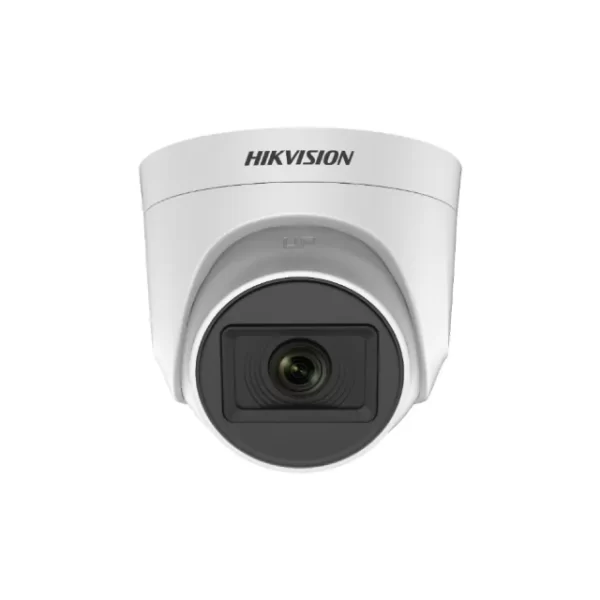

5MP Indoor Fixed Turret Camera | DS-2CE76H0T-ITPF (C)
5MP Indoor Fixed Turret Camera | DS-2CE76H0T-ITPF (C) - Image 2
5MP Indoor Fixed Turret Camera | DS-2CE76H0T-ITPF (C) - Image 3
5MP Indoor Fixed Turret Camera | DS-2CE76H0T-ITPF (C) - Image 4

5MP Indoor Fixed Turret Camera | DS-2CE76H0T-ITPF (C)

Original price was: $104.00.Current price is: $58.00.

DS-2CE76H0T-ITPF (C)

– 5MP@20fps, 4MP@25fps(P)/30fps(N)(Default)
– EXIR, 20m IR, Outdoor EXIR Eyeball, ICR, 0.01 Lux/F1.2, 12 VDC
– Smart IR, DNR, OSD Menu(Up the Coax)
– 2.8/3.6/6mm Lens,
– Support TVI/AHD/CVI/CVBS video signal output
Categories: , ,

Description

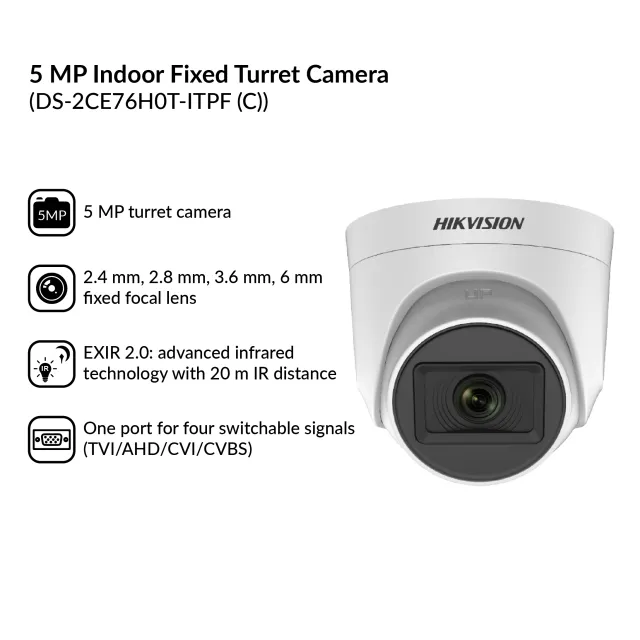

DS-2CE76H0T-ITPF (C) – 5 MP Camera

  • 5 MP, 2560 × 1944 resolution
  • 2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed focal lens
  • Smart IR, up to 20 m IR distance
  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)

Product Specifications

Image Sensor
5 MP CMOS
Signal System
PAL/NTSC
Min. Illumination
0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Angle Adjustment
Pan: 0 to 360°, Tilt: 0 to 75°, Rotation 0 to 360°
Wide Dynamic Range
Digital WDR
Field of Vision
2.4 mm: 110° (H), 81° (V), 137° (D)
2.8 mm: 85° (H), 63° (V), 110° (D)
3.6 mm: 80° (H), 63° (V), 105° (D)
6 mm: 57° (H), 43° (V), 72° (D)
IR Range
Up to 20 m
Max. Resolution
2560 (H) × 1944 (V)
Max. Frame
TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps
AHD: 5M@20fps, 4M@30fps, 4M@25fps
CVI: 4M@30fps, 4M@25fps
CVBS: PAL/NTSC
Power
12 VDC ± 25%
Working Temperature
40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
Material
Plastic

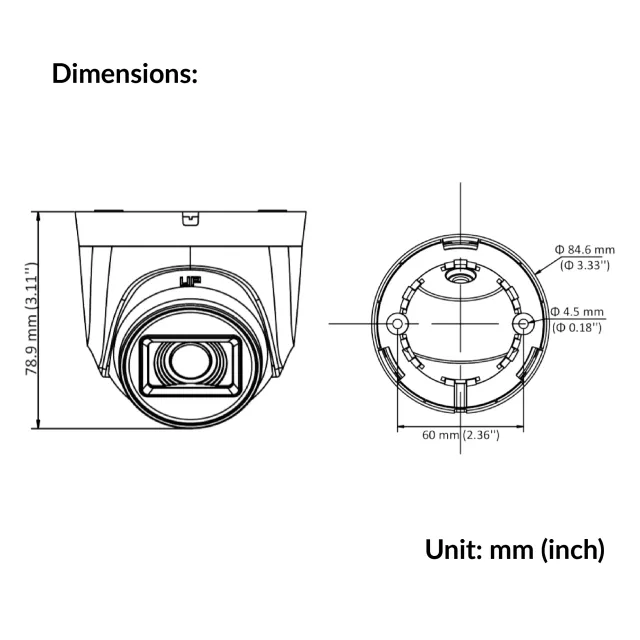

Dimensions
Φ 84.6 mm × 78.9 mm (Φ 3.33″ × 3.11″)
Weight
Approx. 143 g (0.32 lb.)

Datasheet

Download Datasheet
