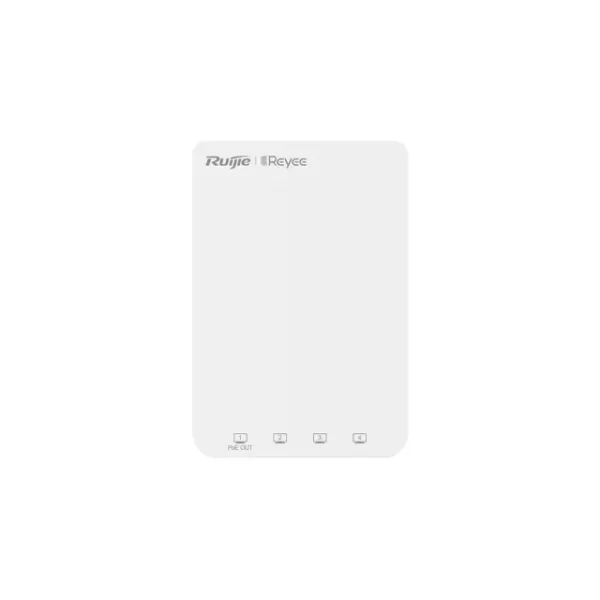

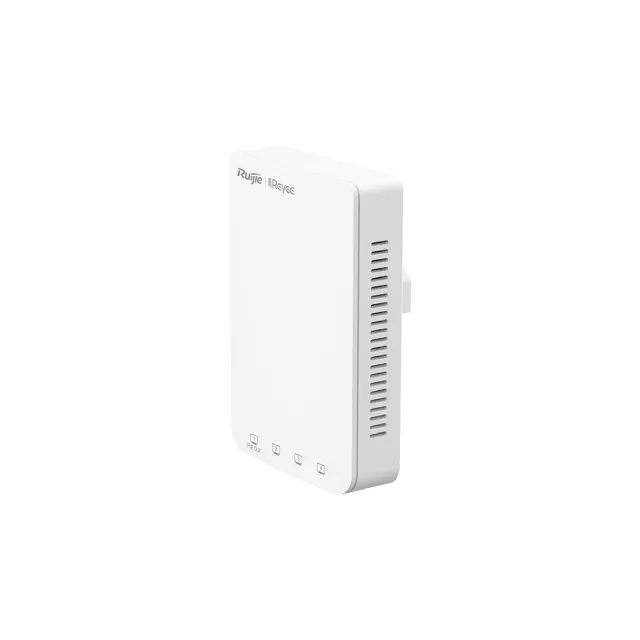

Dual-Band Gigabit Wall Plate Access Point (Ruijie) | RG-RAP1200(P)
Dual-Band Gigabit Wall Plate Access Point (Ruijie) | RG-RAP1200(P) - Image 2
Dual-Band Gigabit Wall Plate Access Point (Ruijie) | RG-RAP1200(P) - Image 3
Dual-Band Gigabit Wall Plate Access Point (Ruijie) | RG-RAP1200(P) - Image 4
Dual-Band Gigabit Wall Plate Access Point (Ruijie) | RG-RAP1200(P) - Image 5

Dual-Band Gigabit Wall Plate Access Point (Ruijie) | RG-RAP1200(P)

Original price was: $490.00.Current price is: $245.00.

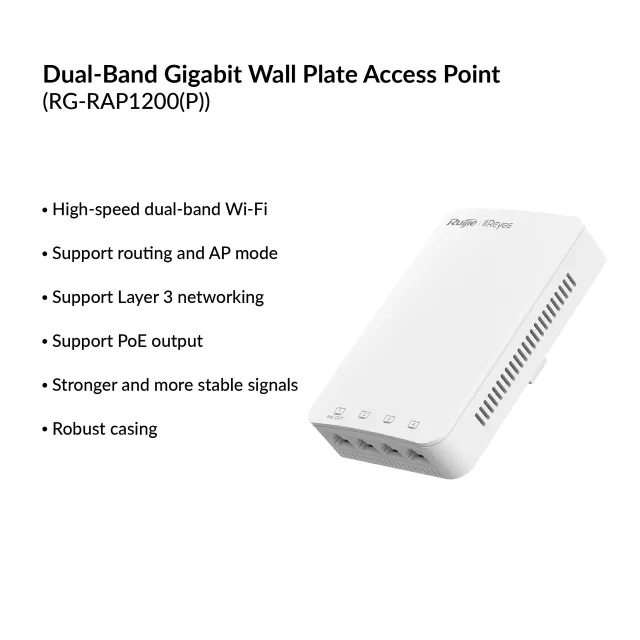

RG-RAP1200(P)
– Dual Band gigabit wall plate AP
– 4 front LAN ports, include 1 standard 802.3af PoE out port
– Built-in antennas
– 1 gigabit uplink port
– dual-band 2.4GHz/5GHz
– Up to 1267Mbps access rate per AP; support AP/ routing mode
– Layer 3 roaming
Categories: , ,

Description

Ruijie Reyee Series RG-RAP1200(P) dual-band gigabit wall plate AP

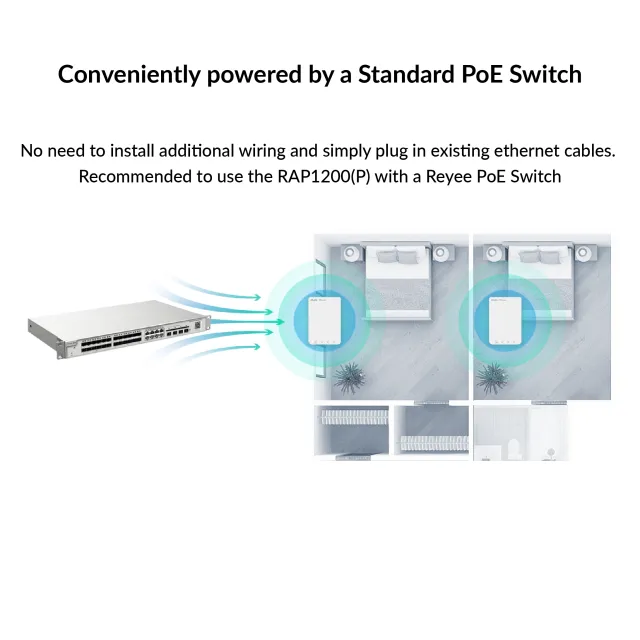

It is a high-performance wall plate AP for small and medium-sized indoor Wi-Fi scenarios. With 802.3af/at PoE support, the AP provides 4 LAN ports at the front,including 1 PoE out port, to facilitate the connection of IPTV, IP phone, etc. The AP also provides 1 Gigabit uplink port on the rear panel. Compliant with 802.11a/b/g/n/ac Wave1/Wave2 Wi-Fi protocol, the AP supports MU-MIMO dual-stream technology and offers built-in omnidirectional antennas. It can operate concurrently at 2.4GHz and 5GHz, providing high-speed wireless access of 400Mbps at 2.4GHz, 867Mbps at 5GHz and up to 1267Mbps per AP.

Hardware specifications
Radio
Dual-stream dual-band
Protocol
Concurrent 802.11ac wave2, wave1, 802.11a/b/g/n
Operating Bands
802.11b/g/n: 2.4G ~ 2.4835GHz
802.11a/n/ac: 5G: 5.150～5.350GHz, 5.725～5.850GHz
Antenna
PF antenna（2.4G: 2dBi, 5G: 2dBi）
Spatial Streams
2.4G 2x2MIMO 5G 2x2MIMO
Max Throughput
2.4G: up to 400Mbps
5G: up to 867Mbps
Access rate per AP: 1.267Gbps
Modulation
OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps
DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps
MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM
Receive Sensitivity
11b: -91dBm(1Mbps), -88dBm(5Mbps), -85dBm(11Mbps)
11a/g: -89dBm（6Mbps）, -80dBm（24Mbps）, -76dBm（36Mbps）, -71dBm（54Mbps）
11n: -83dBm@MCS0, -65dBm@MCS7, -83dBm@MCS8, -65dBm@MCS15
11ac HT20: -83dBm（MCS0）, -57dBm（MCS9）
11ac HT40: -79dBm（MCS0）, -57dBm（MCS9）
11ac HT80: -76dBm（MCS0）, -51dBm（MCS9）
Maximum Transmit Power
5.725～5.850GHz: ≤18dBm (EIRP)
5.150～5.350GHz: ≤18dBm (EIRP)
2.4～2.4835GHz: ≤18dBm (EIRP)
Adjustable Power
1dBm
Dimensions
126mm×86mm×50mm
Weight
0.24kg
Service Ports
Front: 4 10/100/1000Base-T Ethernet ports
LAN1 port supports IEEE.802.3af PoE OUT

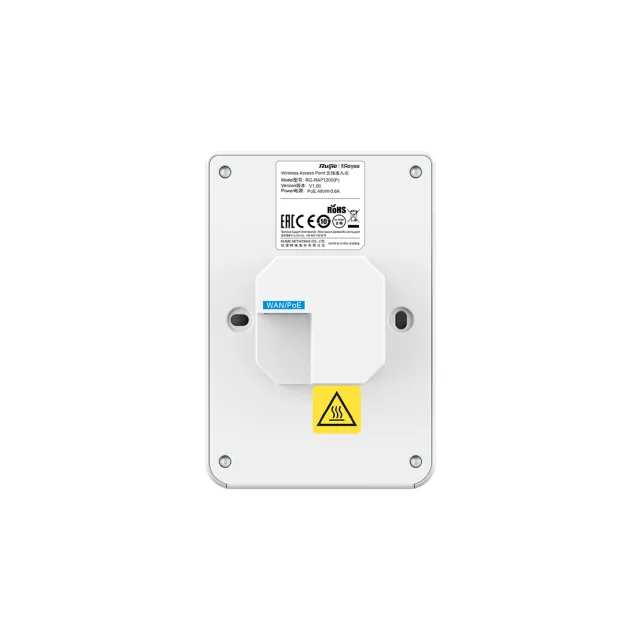

Rear: 1 10/100/1000Base-T Ethernet port
Management Port
N/A
LED Indicator
1 LED indicator
Power Supply
1dBm
Power Consumption
≤8W
Environment
Operating temperature: 0°C～40°C
Storage temperature: -40°C～70°C
Operating humidity: 0％～100％（non-condensing）
Storage humidity: 0％～100％（non-condensing）
Installation
Wall plate installation
Safety Standard
GB4943, IEC 62368-1
EMC Standard
GB9254，EN301 489, EN50155, EN50121, EN55032, EN61000, EN55035
Vibration Standard
IEC61373
Radio Standard
SRRC certification, EN300 328, EN301 893
MTBF
>250000H
Software Features
Operating Mode
AP mode and routing mode
WLAN
Maximum number of clients: 110
Recommended number of clients: 80
Up to 8 SSIDs
Support SSID hiding Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID
SSID-based and radio-based STA limit
Support Layer 2 user isolation
Roaming
Support Layer 2 and Layer 3 roaming
Security
Support PSK authentication
Support static blacklist and whitelist
Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption
Routing
Support static IP address, DHCP, PPPoE Dial Up
Management and maintenance
Support unified networking of all network equipment
Support local or remote management with Ruijie Cloud app
Support local management with web
Support remote management with Ruijie Cloud platform



Datasheet

Download Datasheet
