Description

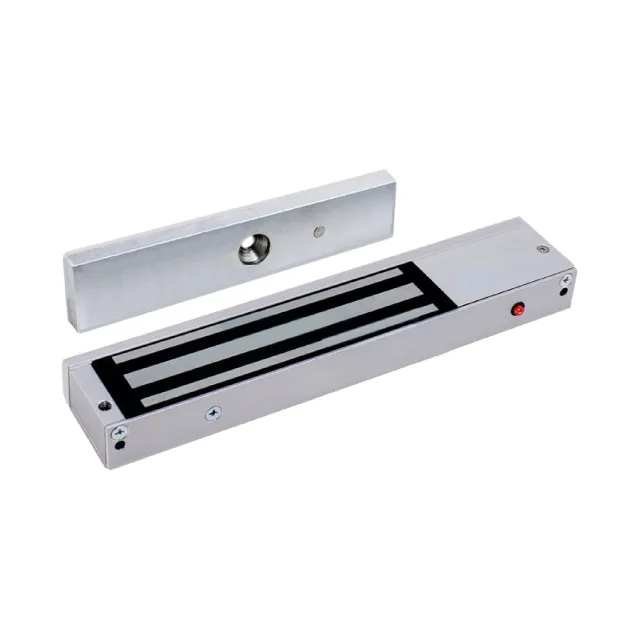

Ebelco-E600-LED(600lbs EM Lock)
Ebelco 600lbs EM Lock

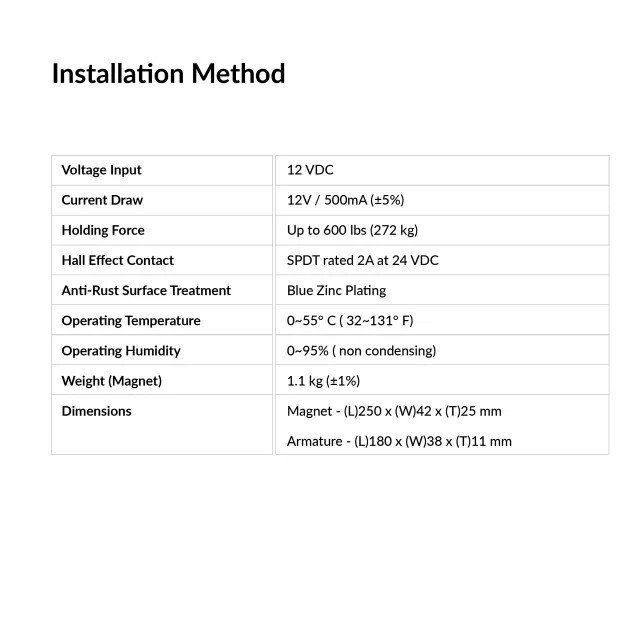

Product Specifications
Voltage Input |
12 VDC |
Current Draw |
12V / 500mA (±5%) |
Holding Force |
Up to 600 lbs (272 kg) |
Hall Effect Contact |
SPDT rated 2A at 24 VDC |
Anti-Rust Surface Treatment |
Blue Zinc Plating |
Operating Temperature |
0~55° C ( 32~131° F) |
Operating Humidity |
0~95% (non condensing) |
Weight (Magnet) |
1.1 kg (±1%) |
Dimensions |
Magnet – (L)250 x (W)42 x (T)25 mm |
Armature – (L)180 x (W)38 x (T)11 mm |
Datasheet
