Description
DS-KIS603-P(C)

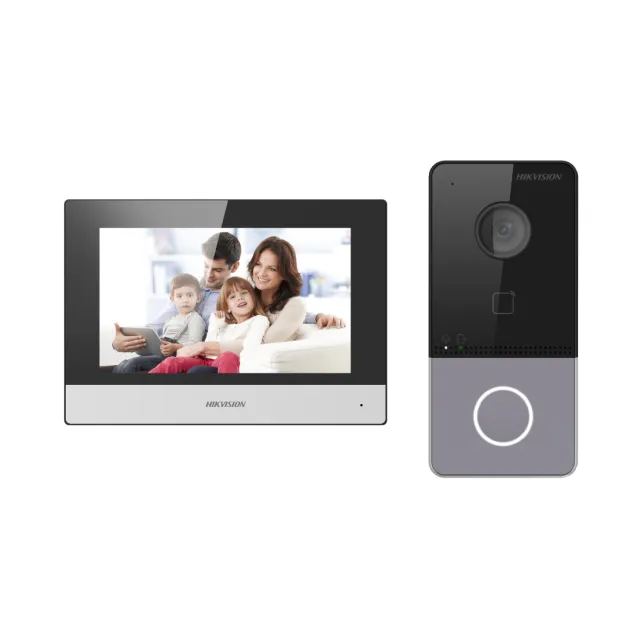

IP Video Intercom Kit
- Indoor station: 7-inch touch screen, user friendly interface, Plug & Play
- Indoor station: Easy, cost-efficient installation, Wifi & POE Supported
- Indoor station: Receives video call and unlocks on mobile App anywhere, any time
- Indoor station: Supports live view of up to 16 IP cameras
- Door station: Hight quality imaging with 2MP resolution
- Door station: Easy, cost-efficient installation, Wifi & POE Supported
- Door station: Easy configuration through WEB interface
- Door station: IP65 water resistant, preventing water ingress for outdoor use
Product Specifications

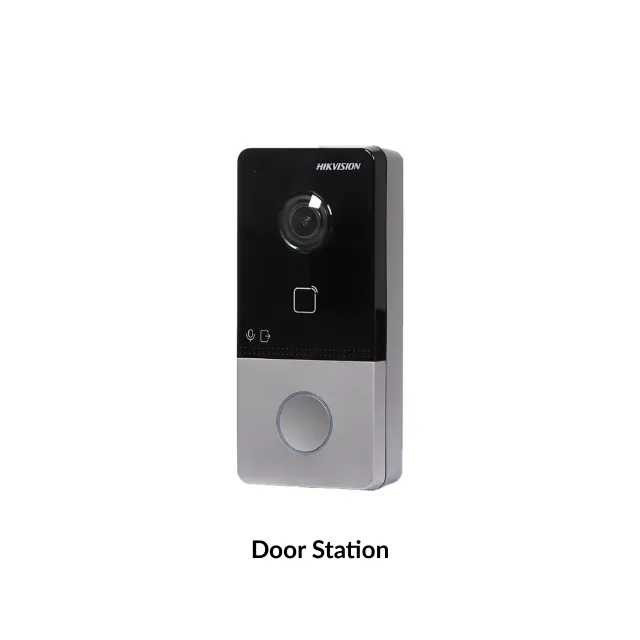

Door Station
Operation system |
Embedded Linux operation system |
Camera |
2MP HD camera |
Night vision |
Low illumination IR supplement mode:3 m |
Field of view |
Horizontal: 131 Vertical: 78° |
Stream |
Main stream: 1080p@30fps, 720p@25fps, Sub stream: D1@25fps |
Motion detection |
Supported |
Audio input |
Built-in omnidirectional microphone |
Wired network |
10/100 Mbps Ethernet |
Alarm input |
4 |
Power supply |
IEEE802.3af, standard PoE 12 VDC |
Working temperature |
-40° C to 53° C(-40° F to 127.4° F) |
Dimension |
138 mm × 65 mm × 27 mm |
Installation |
Surface mounting |
Protection level |
IP65 |

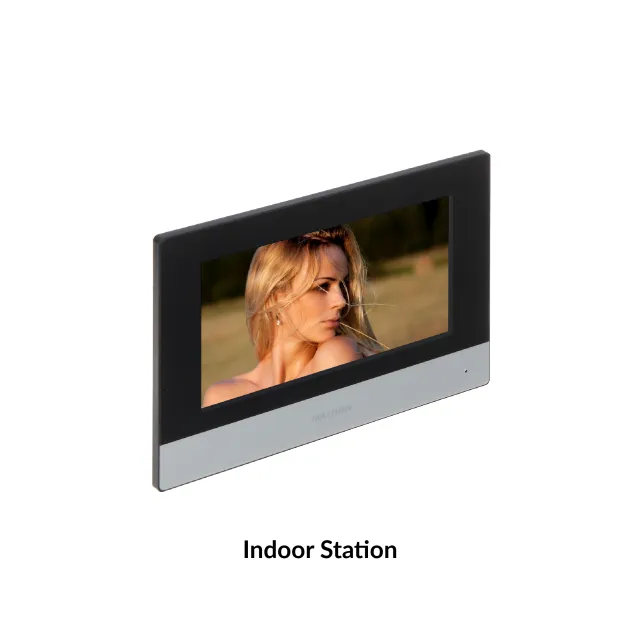

Indoor Station
Operation system |
Embedded Linux operation system |
Operation method |
Capacitive touch screen |
Display screen |
7-inch TFT touch screen |
Display resolution |
1024 × 600 |
Audio input |
Built-in omnidirectional microphone |
Wired network |
10/100 Mbps self-adaptive |
Wireless network |
Wi-Fi 802.11 b/g/n |
Alarm input |
8-ch alarm inputs |
Working temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
Dimension |
200 mm × 140 mm × 15.1 mm (7.9″ × 5.5″ × 0.6″) |
Datasheet
