Description
DS-KH6320-WTE1
Video Intercom Network Indoor Station
Video Intercom Network Indoor Station
- New UI V2.0: User friendly design
- 7-inch colorful touch screen with resolution 1024 × 600
- Standard PoE
- Stores messages and capture pictures in the TF card
- Remote unlocking via the client software or the mobile client
- Views live videos of door stations and linked cameras
- Supports wireless network
Product Specifications
Operation system |
Embedded Linux operation system |
Display screen |
7-inch colorful TFT screen |
Camera |
Low illumination 2 MP HD IR camera |
Display resolution |
1024 × 600 |
Operation method |
Capacitive touch screen |
Audio input |
Built-in omnidirectional microphone |
Wired network |
10/100 Mbps self-adaptive |
Wireless network |
Wi-Fi 802.11 b/g/n |
Alarm input |
8-ch alarm inputs |
Power supply |
IEEE802.3af, standard PoE 12 VDC/1 A |
Working temperature |
-10 °C to 55 °C (14 °F to 131 °F) |

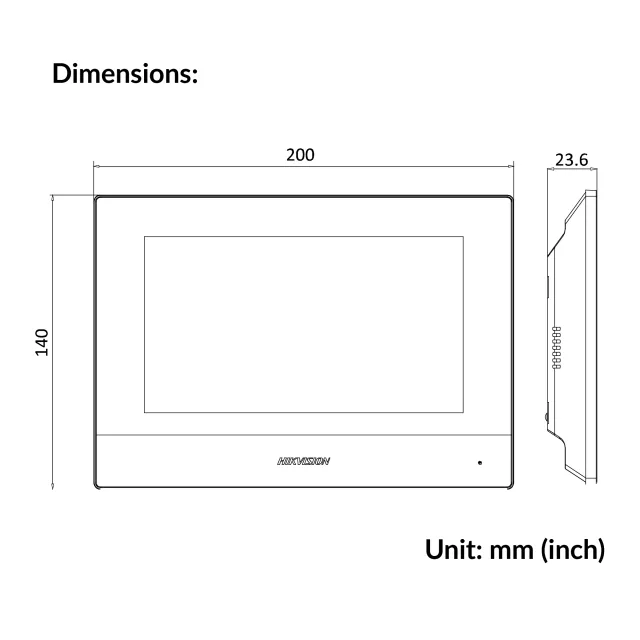

Dimensions |
200 mm × 140 mm × 15.1 mm (7.9″ × 5.5″ × 0.6″) |
Weight |
355 g (without packaging) |
Datasheet
