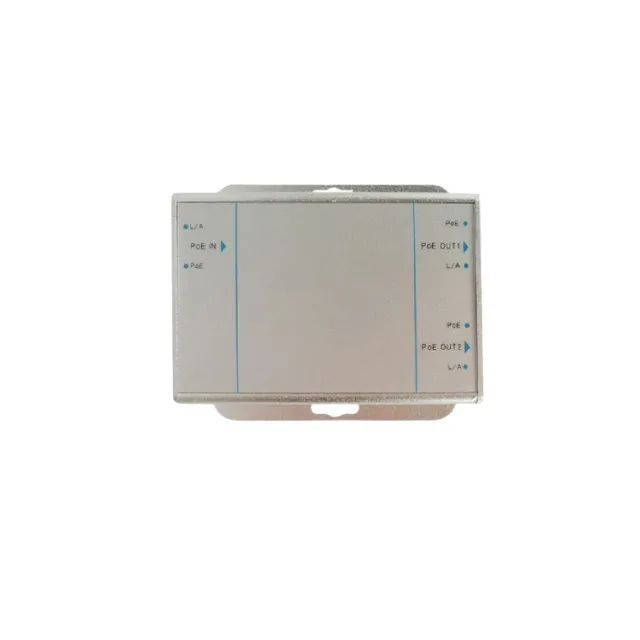

MESILIX 10/100M Single Port PoE Extender | XA-MSLPD102
MESILIX 10/100M Single Port PoE Extender | XA-MSLPD102 - Image 2
MESILIX 10/100M Single Port PoE Extender | XA-MSLPD102 - Image 3

MESILIX 10/100M Single Port PoE Extender | XA-MSLPD102

Original price was: $200.00.Current price is: $100.00.

XA-MSLPD102
– Compatible with IEEE 802.3af/at PSE devices.
– Front-end receiving and Back-end supply power.
– Support 10/100M data transmission through RJ45 port.
– Support 10/100M data transmission through RJ45 port.
Categories: , ,

Description

XA-MSLPD102
  MESILIX 10/100M Single Port PoE Extender

  Product Specifications

Parameters
Specifications
Product Name
10/100M PoE Extender 15.4W/30W
Description
10/100M PoE extender, extends the data transmission from 100m to 200m
Network Protocols and Standards
IEEE 802.3i 10BASET, IEEE 802.3u 100BASET, IEEE 802.3x Flow Control
IEEE 802.3af DTE Power via MDI, IEEE 802.3af/at
Network Medium
Cat5 or more UTP (≤100 meter)
Backplane Bandwidth
1.6Gbps
Forwarding Way
Store-And-Forward architecture
MAC Address Table Size
1k
Port Description
1x RJ45 PoE input port; 2x RJ45 PoE output ports
PoE Features
IEEE802.3af/at Power over Ethernet, 15.4W/30W(IEEE802.3af/at)
Mid-span (4/5+, 7/8- ), end-span (1/2+, 3/6-)
LED Indicator Status
Power; Network; PoE working status
Dimension/Weight

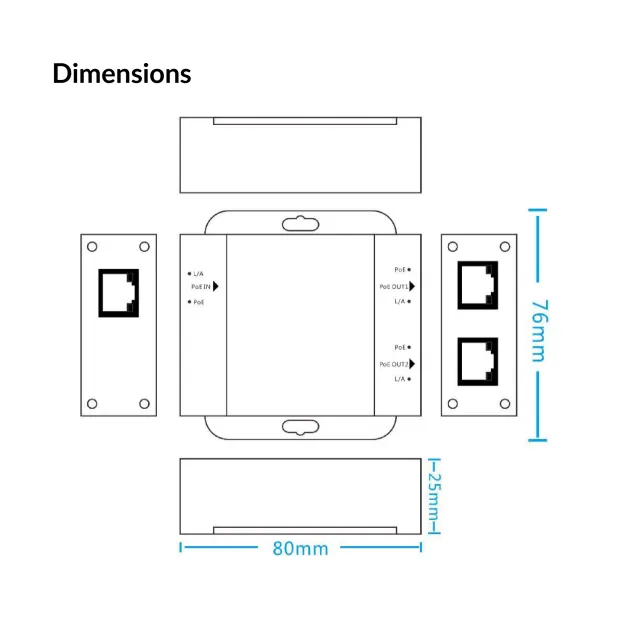

Dimension (LxWxH): 80X76X25mm
Environment
Operating temperature: -20 to 55° C
Storage temperature: -20 to 75°C
Working Humidity: 10%~ 90%, non-condensing
Safety
CE Mark, commercial, FCC Class, RoHS
Warranty
1-year warranty
Package List
POE Extender, User Guide, Warranty Card



  Datasheet

Download Datasheet
