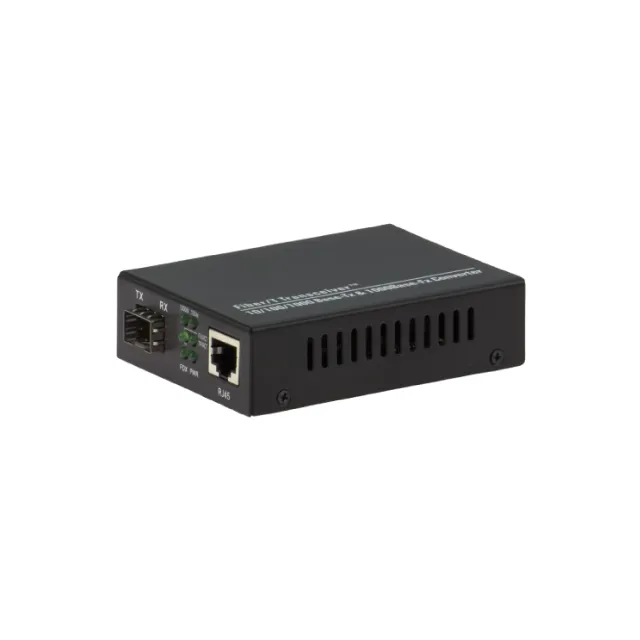

MESILIX 1000M Fiber to RJ45 Media Converter | XA-MSL810SFP
MESILIX 1000M Fiber to RJ45 Media Converter | XA-MSL810SFP - Image 2
MESILIX 1000M Fiber to RJ45 Media Converter | XA-MSL810SFP - Image 3

MESILIX 1000M Fiber to RJ45 Media Converter | XA-MSL810SFP

Original price was: $145.00.Current price is: $81.00.

XA-MSL810SFP

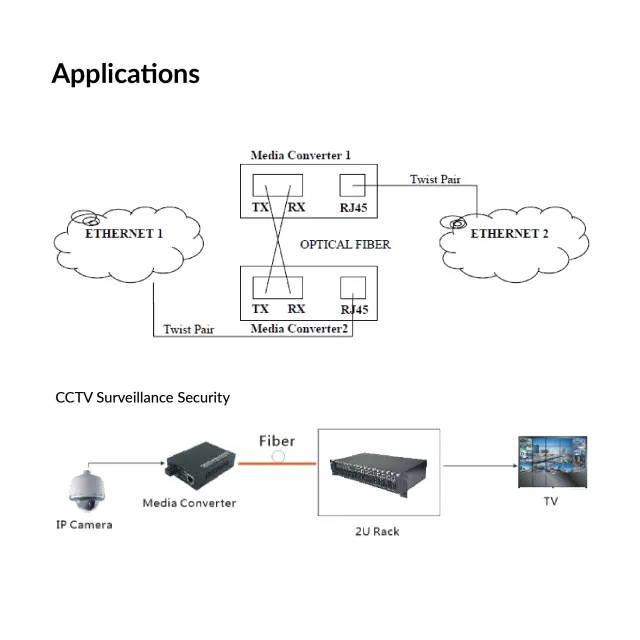

– Media converter for network back bone (SAN,LAN,MAN).
– Can be applied inTelecommunication room,R&D Laboratory, Data center,and etc.
– Providing protections against lighting and static electricity for Ethernet network and the network main system.
Categories: , ,

Description

XA-MSL810SFP
MESILIX 1000M Fiber to RJ45 Media Converter

Product Specifications

Connector
SFP
DataRate
1000Mbps
DuplexMode
Full duplex
Fiber
MM 50/125um,62.5/125um
SM9/125um
Distance
10/100/1000Mbps
MM 550m/2km,SM20/40/60/80km
Wavelength
MM 850nm,1310nm
SM 1310nm,1550nm
WDM Tx1310/Rx 1550nm (A side),Tx1550/Rx 1310nm(B side)
WDM Tx1490/Rx 1550nm(A side),Tx1550/Rx 1490nm(B side)
Connector
RJ45
Data Rate
10/100/1000Mbps
Cable
Cat5/5e/6/6a/7

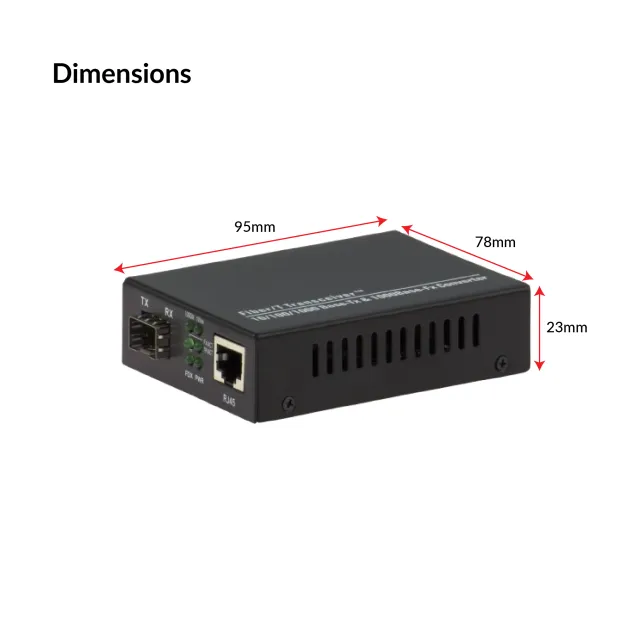

Dimension(W*D*H)
95*78*23mm
Weight
0.8KGS
Installation
Desktop, wall mountable, Media convert ,Chassis installation
Enclosure
Compact-sized metal case

Datasheet

Download Datasheet
