Description
XA-MSLHD6

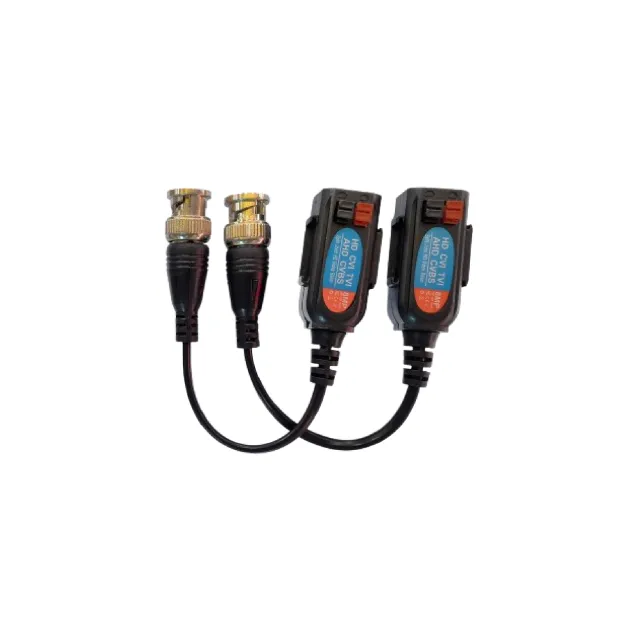

MESILIX Passive Analog HD-Video Transceiver
Product Specifications
Parameters |
Specifications |
Video Port |
1 channel |
HDCVI-720P:400m;1080P:250m; |
|
4MP:250m;8MP:200m |
|
HDTVI-720P:250m;1080P:250m; |
|
Recommend Transmission Distance |
4MP:200m;8MP:160m |
(with passive product) |
AHD-720P:300m;1080P:300m |
4MP:270m;8MP:250m |
|
AnalogVideo:500m; |
|
Coaxial Video Port |
Male BNC |
Twisted-pair Video Port |
2-channel pushing terminal |
Video Compatibility |
HDCVI/HDTVI/AHD/Analog,PAL/NTSC/SECAM Video |
Bandwidth |
0~75MHz |
Surge Protection |
2KV Per:IEC61000-4-5 |
ESD |
Level 3,1a Contact Discharge,Level 3,1b Air Discharge |
Working Temperature |
-10~55°C |
Storage Temperature |
-40°C~85°C |
Humidity (Non condensing) |
0~95% |
Out Shell |
ABS |
Weight |
20g |
