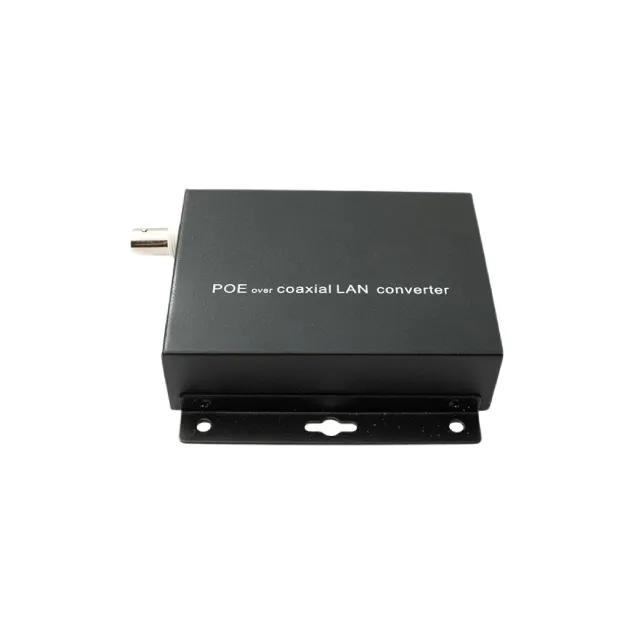

MESILIX PoE Extender[1 pair] | XA-MSLCOX502
MESILIX PoE Extender[1 pair] | XA-MSLCOX502 - Image 2

MESILIX PoE Extender[1 pair] | XA-MSLCOX502

Original price was: $500.00.Current price is: $279.00.

XA-MSLCOX502
– Support multicast function.
– Support one-to-one and one-to-many data transmission.
– Transparent transmission,no software adjustment required.
– Built-in ESD protection circuit,can effectively prevent electrostatic damage.
Categories: , ,

Description

XA-MSLCOX502
  MESILIX PoE Extender[1 pair]

  Product Specifications

Parameters
Specifications
Power supply
DC Input: 48V-56V/2A; PoE 44V-56V
Output: POC 44V-56V
Power Consumption ≥ 3W
Transmission
Transmission medium: Elevator traveling cable, coaxial cable, twisted pair
Transmission distance: Max 2000M
Maximum Link Rates 90Mbps
Multicast: Support IGMP multicast protocol
RS485: Baud rate: 9600,115200 optional
Ethernet: 10Mbps/100Mbps adaptive
Connectors
DC Input: 2.1- 5.5mm plug
DC Output: RJ45(1,2,4,5) positive; (3,6,7,8) negative
Ethernet (data): RJ45(1,2 and 3,6)
Two- wire signal input and output: 5.08mm ×2 Bolt-on Industrial Terminal
Blocks/BNC/RJ45
Ground: RS485: 5.08mm ×3 Bolt-on Industrial Terminal Blocks
LED Indicators
Power: Lights up after power on
RJ45 Yellow/POE indicator light, lights up after PD is turned on
RJ45 Green/Network communication indicator, flashing during communication
Link
Signal connection light, lights up when the master-slave signal is connected, and turns off when the master-slave signal is not connected
Master
The host indicator light will light up after power on if the switch is turned to M before power on,and will not light up after power on if the switch is turned to S before power on
PoE Standard
IEEE802.3 at/af Both supports
Maximum Power
Up to 30W
Operation TEMP/Humidity
-20~+70°C/ 0%~95% RH non condensing
Storage Temperature/Humidity
-40~+85°C/ 0%~95% RH non condensing
Dimensions
(excluding interface dimensions): 121×74.4×29(mm)
Weight
160g
Warranty
1-year warranty




Datasheet

Download Datasheet
