Description
XA-MSLHD12

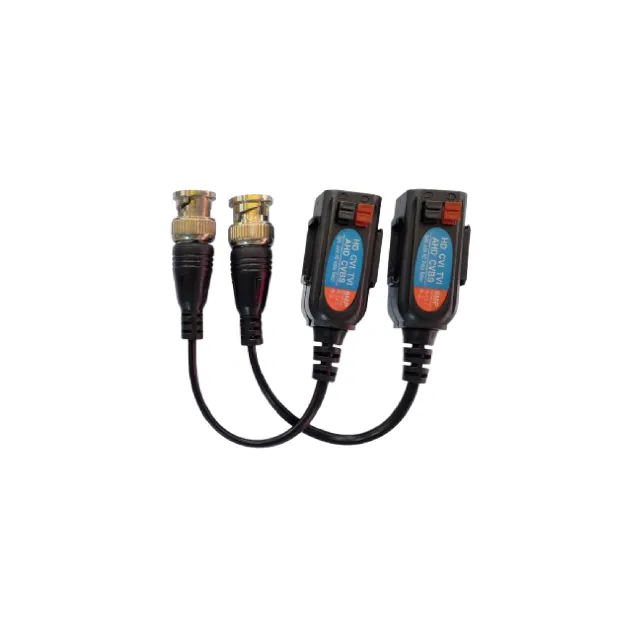

MESILIX Single Channel HD-Video Power Transceiver
Product Specifications
Parameters |
Specifications |
Transmission signal |
1 channel |
HDTVI-720P/1080P:200m;4MP:230m;8MP:180m: |
|
HDCVI-720P:300m;1080P/8MP:200m;4MP:250m; |
|
AHD:-1080P:350m;4MP:250m; |
|
Transmission Distance |
5MP:180m;8MP:300m; |
Analog video:600m; |
|
4MP:270m;8MP:250m |
|
AnalogVideo:500m; |
|
Coaxial Video Port |
Male BNC |
Twisted-pair Video Port |
1*RJ45 port |
Video Compatibility |
HDCVI/HDTVI/AHD/Analog,PAL/NTSC/SECAM Video |
Bandwidth |
0~50MHz |
Anti interference |
>60dB |
Coaxial Port Protection |
2KV(common-mode) |
Per:IEC61000-4-5 |
|
Twisted pair video port protection |
2KV(different-mode) 4KV(common-mode) |
ESD |
1a Contact discharge level 3 |
1b Air discharge level 3 |
|
Per:IEC61000-4-2 |
|
Working Temperature |
0~55°C |
Storage Temperature |
-20°C~70°C |
Humidity |
0~95% Non-condensing |
Size |
79mm×36mm×22mm(with connector) |
Shell |
ABS project plastic |
Weight |
42g |
