Description

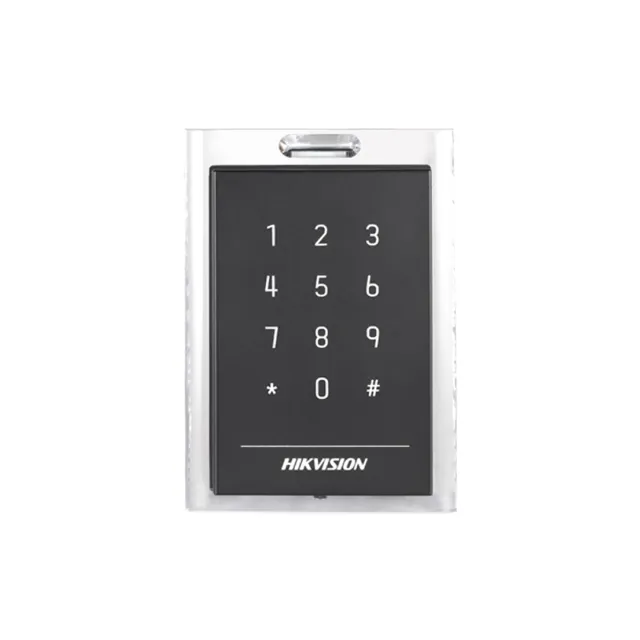

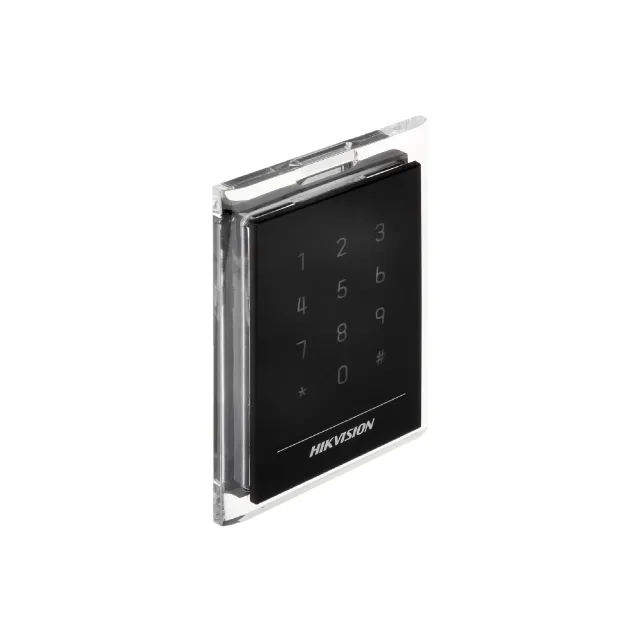

DS-K1101MK
Mifare Card Reader with Keypad
- PC+ABS material shell with PMMA panel design
- Equipped with the 32-bit high-speed processor
- Built-in audible beeper
- Display the reader status with LED indicator
- DIP switch
- RS485 and Wiegand(W26/W34) protocol
- Tamper-proof alarm
- Online upgrade function(under the 485 communication mode), and card reader can degrade to pre-upgrade status in case of upgrading failed
- Watchdog design for repairing itself in case that exception occurs, to ensure the long service life of the reader
- Dust-proof and water-proof design
- Read Mifare card and obtain the card No.
Product Specifications
Power Supply |
12V DC |
Processor |
32-bit |
Reading Range |
≤50mm (≤1.97″) |
ID Settings |
via DIP Switch |
Audio Alert |
Beeper |
Keypad |
Keypad with 12 Keys (0 to 9, *, #) |
LED Indicator |
Power Indicator; Status LED Indicator |
Working Temperature |
-20°C to +65°C |
Dimensions |
132.0mm × 92.3mm × 20.5mm (5.20” × 3.63” × 0.81″) |
Weight |
≤0.14Kg |
Protection Level |
IP 64 |
Installation |
Applied for 120 Gang Box Only |
