Description
RG-RAP2260

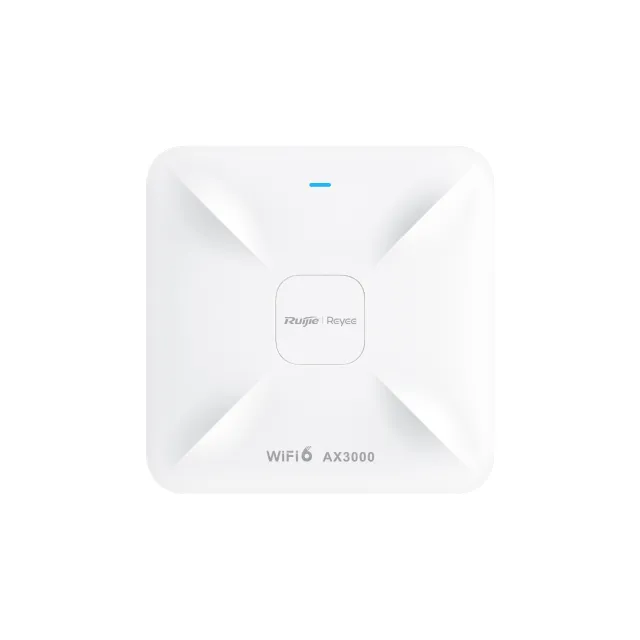

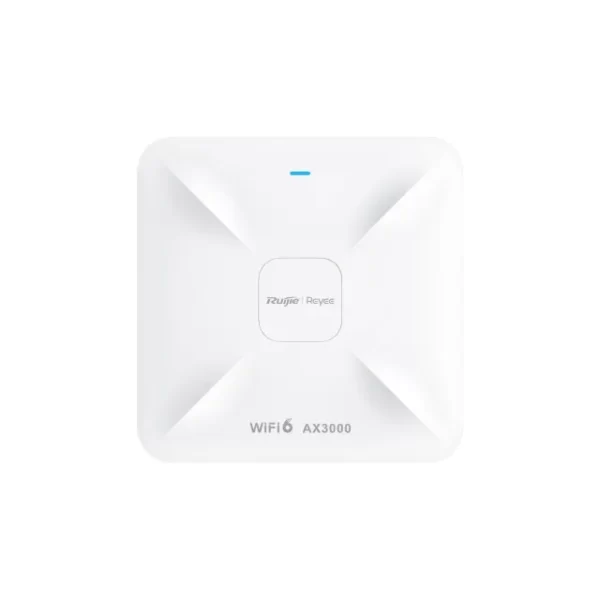

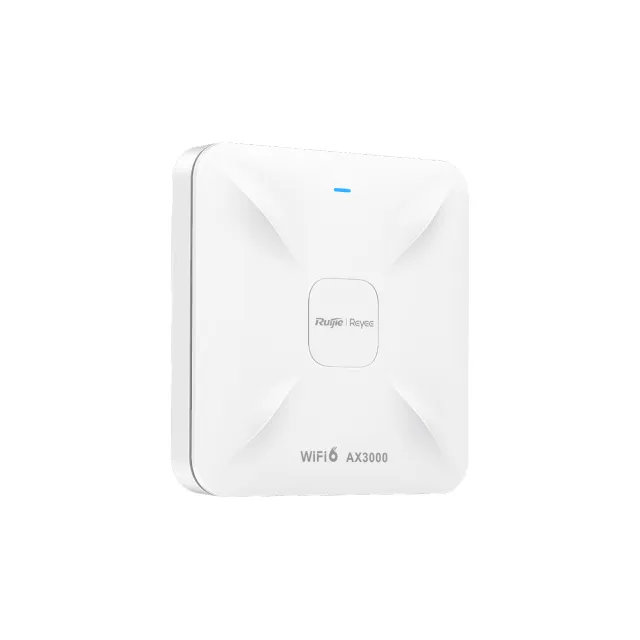

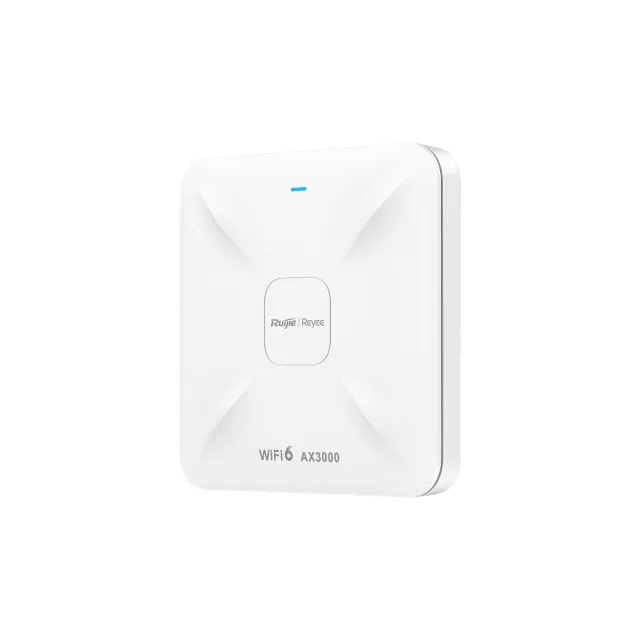

Reyee Wi-Fi 6 AX3000 Multi-G Ceiling-Mount Access Point
- Install extra AP easily with Reyee Mesh technology
- Boost Internet speed with 2.5Gbps uplink for the future
- Build ultra-high performance Wi-Fi with 2.97Gbps throughput
- Client connections over 500, higher practical performance as well
- Support standalone captive portal, easy to enable Wi-Fi authentication
Specifications
| MIMO | 2.4GHz, 2×2, MU-MIMO 5GHz, 2×2, MU-MIMO |
| Max. Wi-Fi Speed | 2.4GHz: 574Mbps 5GHz: 2402Mbps |

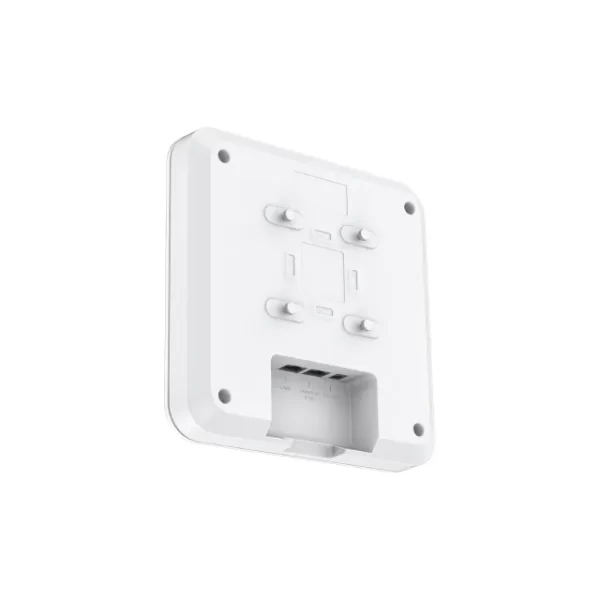

| Fixed Ports | 1 x 100/1000/2500 Base-T port 1 x 10/100/1000 Base-T port 1 x DC port 1 x Reset button |
| Max. Clients | 512 |
| Recommended Clients | 110 |
| Recommended Wi-Fi Coverage Radius |
2.4GHz: 40 meters 5GHz: 70 meters The Wi-Fi coverage is related to the installation environment of the access point |
| Max. Wi-Fi Coverage Radius | 150 meters |
| Operation Frequency Bands | 802.11b/g/n/ax: 2.400 GHz to 2.4835 GHz 802.11a/n/ac/ax: 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz |
| Power Supplies | IEEE 802.3at PoE DC 12V/2A |
