Description

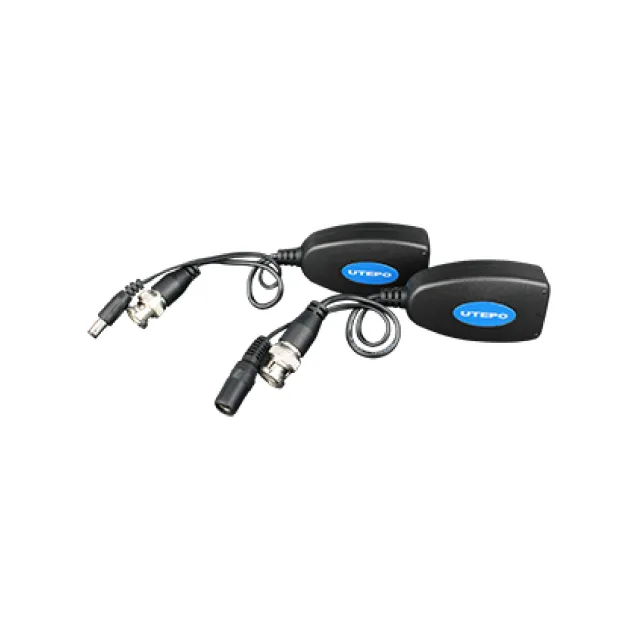

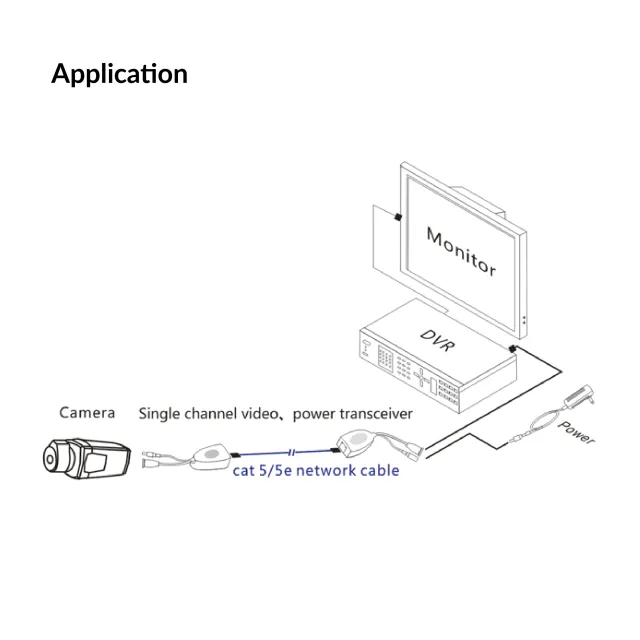

The product is a transceiver that can transmit CCTV video and power at the same time.The device conclude a transmitter and a receiver, uses cat 5/5e/6 twisted cable as transmission medium, It can real-time receive color video or mono PAL/NTSC/SECAM video or HDCVI, AHD, HDTVI HD video, also transmit DC power to 300m, supply 12V DC power to camera, simplified project wiring. In practical project ,it features long transmission distance, good transmission effect, super anti-interference.Widely used in security, teaching these complex environment.
Transmission Signal |
1 channel |
Transmission Distance |
HDTVI-720P/1080P: 200m;4MP: 230m; 8MP: 180m; |
HDCVI-720P: 300m ; 1080P/8MP: 200m; 4MP: 250m; |
|
AHD: -1080P: 350m; 4MP: 250m; 5MP: 180m; 8MP: 300m; |
|
Analog video: 600m; |
|
Coaxial Video Port |
Male BNC |
Twisted-pair Video Port |
1*RJ45 port |
Video Compatibility |
HDCVI/HDTVI/AHD/Analog, |
PAL/NTSC/SECAM Video |
|
Bandwidth |
0～50MHz |
Anti-interference |
>60dB |
Coaxial Port Protection |
2KV(common-mode) |
Per: IEC61000-4-5 |
|
Twisted pair video port protection |
2KV(different-mode)4KV(common-mode) |
ESD |
1a Contact discharge level 3 |
1b Air discharge level 3 |
|
Per: IEC61000-4-2 |
|
Operating Temperature |
0～55℃ |
Storage Temperature |
-20℃~70℃ |
Humidity |
0～95% Non-condensing |

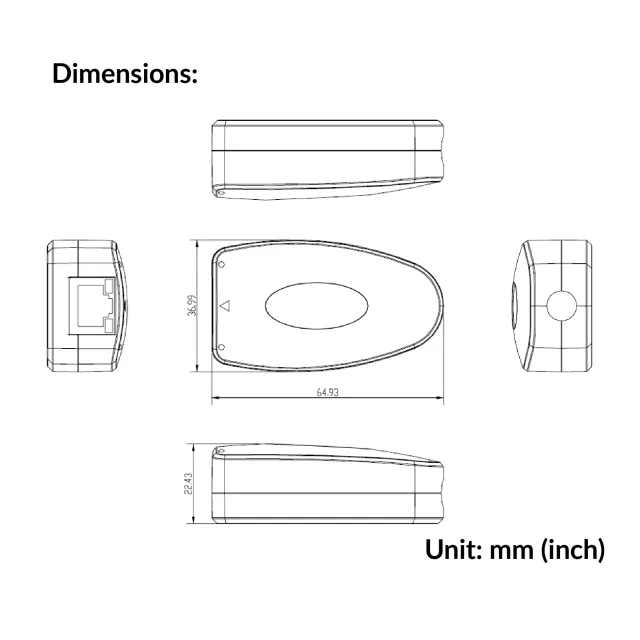

Size |
79mm×36mm×22mm（with connector ) |
Shell |
ABS proiect plastic |
Weight |
42g |
